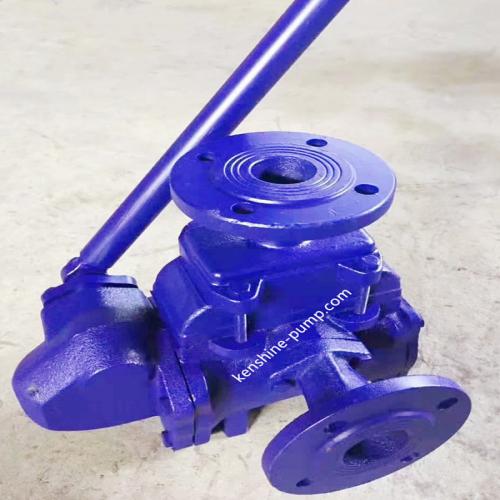

• Product Name: CS hand operated oil pump
• Model Number: CS-15Y
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

CS hand operated oil pump CS-15Y Description

CS series hand pumps are for single cylinder double acting hand piston pumps.  This series of piston pumps are suitable for pumping lubricating oil, fuel oil, other lubricating oil, fresh water and sea water without hard particles and fibers.

The pump is widely used in all kinds of ships, industrial and mineral oil depot, vehicle transport and it can also be used as the oil pumps and diesel generator set supporting.

CS Hand pump is suitable for pumping water, gasoline, kerosene etc. oils without fiber or other solid particles. It only needs 1 ~ 2 people to shake the handle by hand for work.

Hand pump is a pump that moves the pump shaft by hand to make the pump work. It has the characteristics of simple structure, easy operation, reliable work and light weight. It is mainly allocated to military oil depot, field oil depot and field gas station for filling and pumping oil for dispersed vehicles and oil storage containers

The handle of the hand pump should move reciprocally. Filters should be installed before the inlet of the pump to prevent dirt from entering the pump to affect the efficiency and service life of the pump and even damage other parts.

Hand pump has piston type and scraper type etc. two types. The oil or water is sucked and discharged by changing the volume of the piston or scraper when the hand pump works.

Model meaning

CS-15Y

CS: hand pump

15: pump inlet and outlet(15mm)

Y: convey oils (cast iron material)

H: Convey water. (bronze, stainless steel etc. for sea water)
