• Product Name: CQG Vertical pipeline magnetic centrifugal pump
• Model Number: 100CQG-80
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

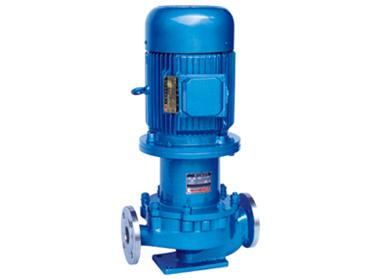

CQG Vertical pipeline magnetic centrifugal pump 100CQG-80 Description

Pump Summary:

CQG Series magnetic pipeline centrifugal vertical pump is a new type developed by our company on the basis of CQB horizontal magnetic pumps and ISG Series vertical pipeline centrifugal pump. CQG Series magnetic pipeline centrifugal vertical pump has the characteristics of ISG Series vertical pipeline centrifugal pump and the advantages of magnetic chemical pump such as corrosion resistance and no leakage etc.

Advantages:

1.No leakage operation. CQG magnetic pipeline centrifugal vertical pump can transfer flammable, explosion, toxic and corrosive liquids.

2.Excellent pump material. Pump body, impeller, isolating sleeve and other flow parts are made of stainless steel with high quality

3.Shaft sleeve uses Silicon carbide, tungsten carbide for high wear resistance material and sliding bearing uses carbon stone M106K and sets up lubrication oil groove which ensure the pump life.

4.Vertical installation, compact structure, small area

5.Small vibration, low noise, smooth operation.

6. Pump performance is similar to CQB horizontal magnetic pump and the parts can be exchanged.

Pump range:

Flow rate:3.2 to 100m3/h,

Head:20 to 80m

Power:0.75 to 75KW

Specification sheet:
