• Product Name: CQG Stainless steel vertical pipeline magnetic pump
• Model Number: CQG32-160
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

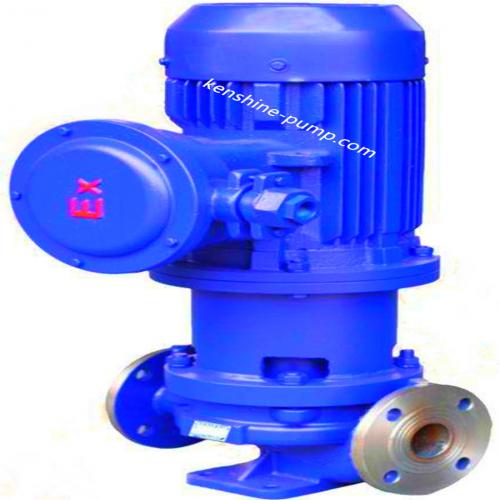

CQG Stainless steel vertical pipeline magnetic pump CQG32-160 Description

CQG type vertical pipeline magnetic pump is a new type of pipeline pump developed by our company on the base of horizontal magnetic pump. The pump is with magnetic coupling for no leakage pumping. CQG vertical pipeline magnetic pump is used to transport flammable, explosive, highly toxic and corrosive liquids.

Pump parts such as pump body, impeller, isolation sleeve and other flow components etc. are made of stainless steel.

Shaft sleeve is made of highly wear-resistant silicon carbide and tungsten carbide. The sliding bearing is made of carbon graphite M106K and the lubricating oil groove is set to effectively guarantee the service life of the pump.

vertical installation, compact structure, small volume

small vibration, low noise, stable operation

Most parts of the pump are interchangeable with CQB series magnetic pumps and the performance of the pump is the same as that of CQB series horizontal magnetic pump

Q:3.2-100m3/h

H;20-80m

Motor power:0.75 75 kw
