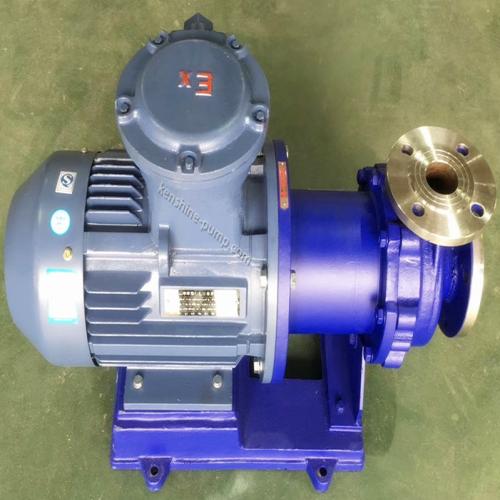

CQB Stainless steel corrosion resistant magnetic drive pump CQB65-40-200 Description

CQB Stainless steel magnetic drive pump corrosion resistant pump no leakage pump:

CQB magnetic drive pump is a new type of completely leak-free and corrosion-resistant pump developed by our company. It is a supplement and improvement of CQ magnetic pump. The main parts of CQB magnetic drive pump adopts full stainless steel material. The pump has good corrosion resistance for the organic acid, organic compound, alkali, neutral solution and a variety of gas. The double helix carbon graphite bearing and the adaptation of the hard alloy bushing with strong wear resistance ensure the service life of pump.

CQB magnetic drive pump is an optimal pump to handle corrosive mediums without leakage. It is the ideal pump type for conveying corrosive medium without leakage. CQB magnetic drive pump can directly replace IH chemical process pump.

CQB series magnetic pump is widely used in petroleum, chemical, metallurgy, pharmaceutical, electroplating, environmental protection and other industries. CQB magnetic drive pump can transport the flammable, explosive, highly toxic, precious liquid under 100℃. Magnetic transmission principle, no leakage transmission of corrosive media. Flow: 3-100m3/, Head: 20-80m power: 0.75-75kw

Technical specification sheet:

ModelFlow （m3/h）Head (m)Speed (rpm)Power (KW)CQB32-20-1253.220
1.1CQB32-20-16032
1.5CQB40-25-1056.312.5
1.1CQB40-25-12520
2.2CQB40-25-16032
3CQB40-25-20050
5.5CQB50-40-8512.58
1.1CQB50-32-10512.5
1.5CQB50-32-12520
3CQB50-32-16032
4CQB50-32-20050
7.5CQB50-32-25080
18.5CQB65-50-125252029004CQB65-50-16032
7.5CQB65-40-20050
15CQB65-40-25080
22CQB80-65-1255020
7.5CQB80-65-16032
15CQB80-50-20050
22CQB80-50-25080
37CQB100-80-12510020
15CQB100-80-16032
22CQB100-65-20050
37CQB100-65-25080
55CQB150-150-20020050
55CQB200-200-40040032145075

Flow rate	3-100m3/h
Head	10-80m
pump material	stainless steel
centrifugal pump	chemical pump
transfer pump	circulating pump
magnetic pump	no leakage pump
corrosion resistant pump	acid alkali pump
