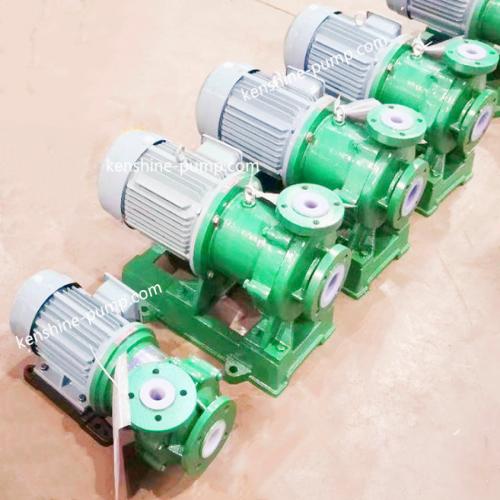

CQB-F fluoroplastic lining magnetic pump

CQB-F fluoroplastic lining magnetic pump
  • Product Name: CQB-F fluoroplastic lining magnetic pump
  • Model Number: CQB65-50-160F
  • Brand Name: kenshine-pump.com
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CQB-F fluoroplastic lining magnetic pump CQB65-50-160F Description

CQB-F Fluoroplastic lining magnetic pump

CQB-F fluoroplastic magnetic pump adopts the active magnet coupling to be directly mounted on the motor shaft. The pump chamber is completely closed, and the impeller with magnet on the pump shaft is driven indirectly by magnetic coupling with compact rotating structure, safety and energy saving.

Wet parts /flow parts which contact with liquids for CQB-F fluoroplastic magnetic pump is fluoroplastic (FEP) and the pump case is metal material, so the pump body is enough to withstand the weight of the pipe and mechanical impact.

CQB-F type fluoroplastic magnetic pump to prevent leakage

CQB-F fluoroplastic magnetic pump cancelled the shaft seal, the use of magnetic coupling indirect drive, completely eliminate the trouble of dripping, never pollute the use site.

CQB-F fluoroplastic magnetic pump can continuously transport any concentration of acid, alkali, strong oxidant and other corrosive media without damage.

Application

CQB-F fluoroplastic magnetic pump is widely used in petrochemical industry, acid and alkali production, non-ferrous metal smelting, automobile manufacturing pickling process, rare earth separation, pesticides, dyes, medicine, paper making, electroplating, radio and other industries.

Operating temperature: -20℃ to 100℃


flow rate 2-100m3/h
Head 3-50m
pump material Cast iron or cast steel lined with FEP
