• Product Name: CQB-F fluorine plastic liner magnetic chemical pump
• Model Number: 100CQB-80-32F
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

CQB-F fluorine plastic liner magnetic chemical pump 100CQB-80-32F Description

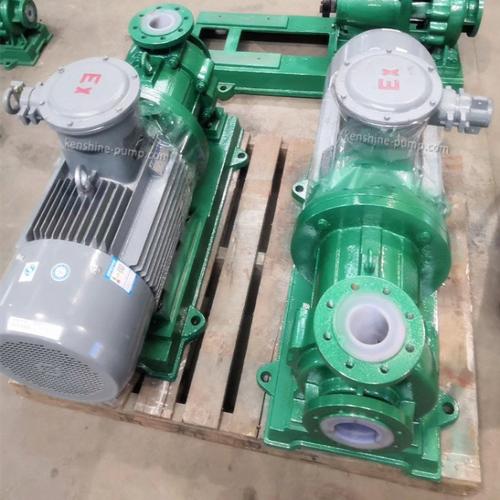

CQB-F fluorine plastic liner magnetic drive pump

CQB-F Fluorine plastic liner magnetic drive pump is widely used in petrochemical industry, acid and alkali making, non-ferrous metal smelting, automobile pickling process, rare earth separation, pesticide, dye, medicine, paper making, electroplating, radio and other industries.

Liquid temperature: -20 ℃ ~100 ℃.

Design features

No leakage

The shaft seal has been removed. The pump is driven by magnetic coupling to completely eliminate the worry of dripping and never pollute the site.

The flow part of the pump is made of fluorine plastic alloy so as to continuously transport any acid, alkali, strong oxidant and other corrosive media with any concentration.

working principle

The driving device is directly mounted on the motor shaft with an active magnet coupling. The pump chamber is completely enclosed. The impeller with magnet on the pump shaft is driven indirectly by magnetic coupling.

Durable pump body structure

The wet part is for fluorine plastic and the pump body bracket is a metal material, so the pump body can support the weight of part of the pipeline.

CQB-F fluorine plastic liner magnetic drive pump is made of metal lined with fluorine plastic F46 and used to convey the acid, alkali, solvent etc with any concentration.

Parameter:

Model

Capacity
（m3/h）

Head
(m)

NPSH(r)
(m)

Speed
(r/min)

Caliber(mm)

Temp.
(℃)

Voltage
(V)

Inlet

Outlet

CQB16-12-18F

1.8

8

6.0

2900

Φ16

Φ12

＜80

220/380

CQB20-14-100F

3

12

6.0

2900

Φ20

Φ14

＜80

220/380

CQB32-25-125F

3.2

20

5.0

2900

Φ32

Φ20

＜80

380

CQB40-32-115F

6.3

15

6.0

2900

Φ40

Φ32

＜80

380

CQB40-32-145F

6.3

25

5.0

2900

Φ40

Φ32

＜80

380

CQB50-40-125F

12.5

20

3.5

2900

Φ50

Φ40

＜80

380

CQB50-40-160F

12.5

32

3.5

2900

Φ50

Φ40

＜80

380

CQB65-50-125F

25

20

4.0

2900

Φ65

Φ50

＜80

380

CQB65-50-160F

25

32

4.0

2900

Φ65

Φ50

＜100

380

CQB80-65-125F

50

20

4.0

2900

Φ80

Φ65

＜100

380

CQB80-65-160F

50

32

4.0

2900

Φ80

Φ65

＜100

380

Model

Caliber(mm)

Flow
(m3/h)

Head
(m)

(NPSH)r
(m)

Power
(kw)

Speed
(r/min)

Eff.
(%)

Voltage
(v)

Inlet

Outlet

CQB15-10-85F

15

10

1.8

8

6.0

0.12

2800

15

220/380

CQB20-15-105F

20

15

3

12

6.0

0.37

2800

19

220/380

CQB32-25-125F

32

25

3.2

20

5.0

0.75

2900

26

380

CQB40-32-115F

40

32

6.3

15

6.0

0.75

2900

35

380

CQB40-32-145F

40

32

6.3

25

5.0

1.5

2900

29

380

CQB50-40-125F

50

40

12.5

20

3.5

2.2

2900

41

380

CQB50-40-160F

50

40

12.5

32

3.5

3

2900

39

380

CQB65-50-125F

65

50

25

20

4.0

3

2900

47

380

CQB65-50-160F

65

50

25

32

4.0

5.5

2900

46

380

CQB80-65-125F

80

65

50

20

4.0

7.5

2900

54

380

CQB80-65-160F

80

65

50

32

4.0

11

2900

52

380

CQB100-80-125F

100

80

100

20

4.0

11

2900

55

380

CQB100-80-160F

100

80

100

32

4.0

18.5

2900

56

380
