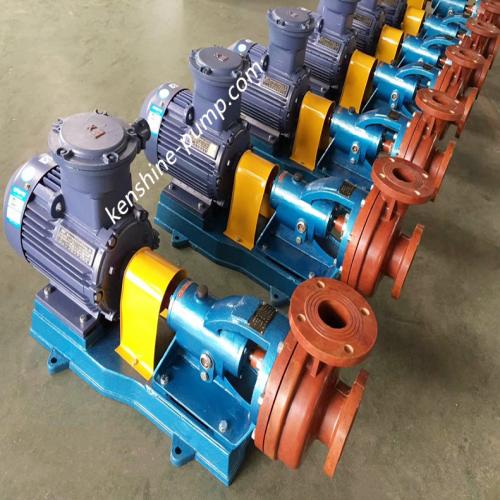

Corrosion-resistant fiberglass pump FS80*65-32 Description

Corrosion-resistant fiberglass pump

fiberglass reinforced plastic pumps are centrifugal, single stage pumps,

The flow parts which contact with liquids are made of polyvinyl butyral, modified phenolic glass fiber material by high temperature molding, with superior corrosion resistance, high temperature resistance, light weight, high specific strength, no deformation, etc

Shaft seal: using WB2 type external F4 corrugated mechanical seal, reliable sealing, long service life.

FS Fiberglass pump is mainly used in petrochemical, smelting, dyes, printing and dyeing, pesticide, pharmaceutical, rare earth, leather and other industries. It is suitable to transport various non-oxidizing acids (hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid) and other corrosive media) without solid particles, not easy to crystallize. Liquid temperature is not higher than 100℃.

Close coupled type which is more compact for the pump and motor.   Flexible shaft coupling for the bigger specification.

ModelFlow rateHeadSpeedEfficiencyNPSHMotor powerm3/hmr/min％mkwFS25×25-12.53.212.529004130.55/0.75FS40×32-206.32029005031.1/1.5FS40×32-326.33229004532.2/3FS50×40-2012.52029005332.2/3FS50×32-3212.53229005134.0/5.5FS65×50-20252029006433.0/4FS65×50-32253229006035.5/7.5FS80×65-32503229006947.5/11FS80×65-355035290069411FS100×80-5010050290073522/30

flow rate	2-100m3/h
head	2-50m
pump material	fiberglass reinforced plastic FRP
centrifugal pump	chemical pump
industrial pump	acid pump
fiberglass pump	transfer pump
circulating pump	corrosion resistant pump
kenshine-pump	china pump
