• Product Name: CIS Single stage horizontal centrifugal marine pump
• Model Number: CIS200-150-315A
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

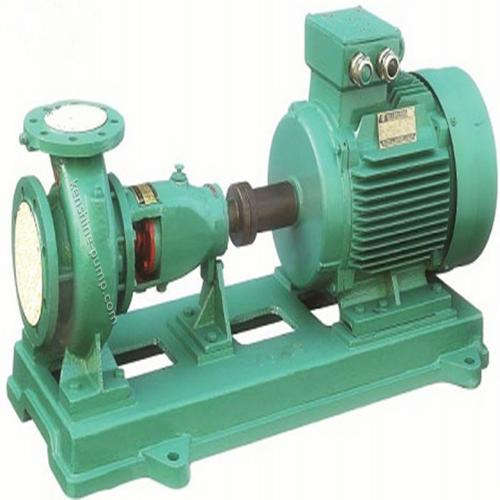

CIS Single stage horizontal centrifugal marine pump CIS200-150-315A Description

CIS horizontal single stage Centrifugal marine pump

CIS type pump is a single-stage single-suction centrifugal marine pump. It is designed according to ISO2858 standard. CIS centrifugal pump is used to convey the fresh water or sea water as the marine pumps. Water temperature is no higher than 80 degree Celsius. The special material and seal can be used for the liquids with the temperature is up 120 degree Celsius.

CIS centrifugal pump is suitable as cooling pumps and fresh water booster or circulation pump, bilge and ballast pumps, fire fighting, general service pumps, deck wash pumps and so on.

Max suction pressure:0.3MPa

Max. working pressure:1.6MPA

Mechanical seal or gland packing seal;

Pump case: cast iron or stainless steel

Cast iron or bronze impeller,

Stainless steel shaft:

Motor:380V/440V, 50HZ/60HZ, 1450RPM/1750RPM, 2900RPM/3350RPM
