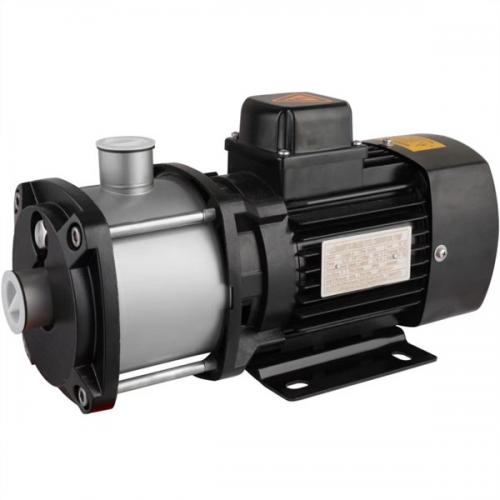

• Product Name: CHM Light stainless steel horizontal multistage centrifugal pump
• Model Number: CHM16-2
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 600sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

CHM Light stainless steel horizontal multistage centrifugal pump CHM16-2 Description

CHM non-self-priming horizontal multi-stage centrifugal pump has high efficiency, low noise, mild corrosion resistance, compact structure, beautiful appearance, small volume, light weight and other characteristics.

The pump is suitable to transport low viscosity, neutral, non-explosive liquid and the liquid does not contain solid particles or fiber etc. impurity. The pumped liquid has no the chemical corrosive to the pump material.

Application:

Circulation of air conditioning system

Cooling system

Water treatment (water purification);

Industrial cleaning system

Transportation, circulation and lifting of liquids

Hot and cold water;

Food, beverage, agriculture and other ingredients system

Medium temperature: -15℃~+70℃ of normal temperature, Hot water type -15℃~+110℃;

Performance:

Flow range: 0.5~28m3/h

maximum pressure: 10bar

Ph range of medium: pH5~9

Maximum ambient temperature: +40℃

The maximum suction pressure is limited by the maximum working pressure.

50HZ, Single phase, 220-240V, 3phase, 220-240v, 380V-415V/60HZ

0.25kw-4.4KW, Single phase, maximum motor power:2.4KW

Material: cast iron/stainless steel
