• Product Name: CHM light duty horizontal multistage stainless steel centrifugal feed water pump
• Model Number: CHM1-5
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

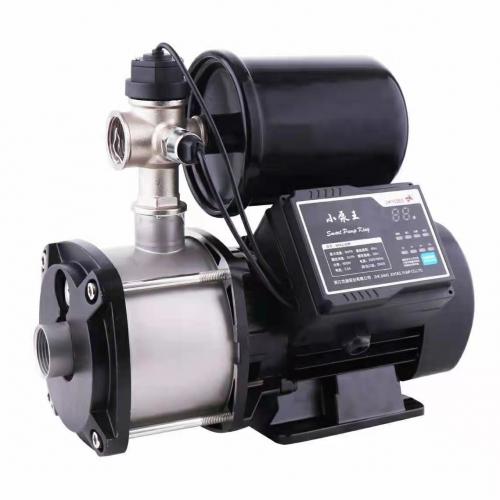

CHM light duty horizontal multistage stainless steel centrifugal feed water pump CHM1-5 Description

CHM light duty horizontal multistage centrifugal feed water pump

CHM is a non-self-priming horizontal multistage centrifugal pump. It is characterized by high efficiency, low noise, light corrosion resistance, compact structure, beautiful appearance, small size, light weight, etc.

CHM horizontal stainless steel multistage pump is applicable to the liquid with low viscosity, neutral, non-explosive and free of solid particles or fibers. The liquid conveyed cannot be chemically corrosive to the pump material. (Oil or oil-based liquid can be transported by special type of pump);

Application:

Circulation of air conditioning system;

Cooling system;

Water treatment (water purification);

Industrial cleaning system;

Liquid transportation, circulation and lifting;

Hot and cold water;

Food, beverage, agriculture and other ingredient systems

Medium temperature:

normal temperature type - 15 degree celsius to 70 degree Celsius;

Hot water type - 15 to 110 degree Celsius.

Flow range: 0.5~28m3/h;

Maximum pressure: 10 bar;

Medium pH range: pH5~9;

Maximum ambient temperature:+40 ℃;
