• Product Name: CHLF stainless steel segmented multistage centrifugal pump
• Model Number: CHLF2-60
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

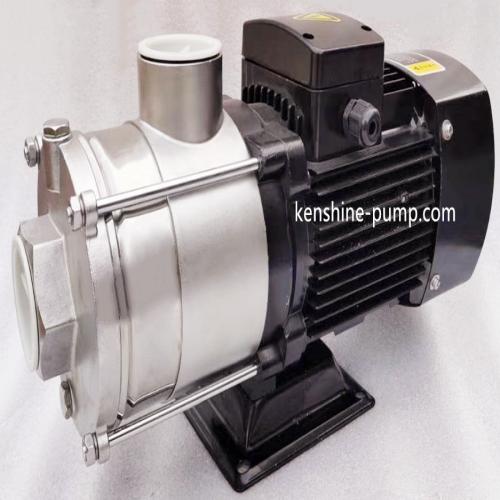

CHLF stainless steel segmented multistage centrifugal pump CHLF2-60 Description

CHLF light duty stainless steel segmented multistage centrifugal pump is used to pump the thin, clean liquids without solid particles or fiber etc. impurity and non-flammable and non-explosive liquid.

CHLF multistage stainless-steel pump can transport mineral water, softened water, pure water, oil and other light chemical liquids.

When the transport liquid density or viscosity is greater than water, it is necessary to use a high-power motor.

The pumped liquids about chlorine content, PH value, temperature and solvent, oil content etc. will affect the pumps choice.

CHLF stainless steel segmented multistage pump is equipped with a repair-free mechanical seal. The flow parts are made of stainless steel data (304 or 316) and the pump has  low noise, resistance to light corrosion, beautiful appearance, small volume, light weight, long service life etc.

Operation conditions:

Liquid temperature: normal temperature -15℃ to +70℃

Hot water type +70℃ to +110℃

Maximum ambient temperature: +40℃

Maximum operating pressure: 10 ba

Maximum inlet pressure is subject to maximum operating pressure

Medium PH value: PH4~9

Application:

Domestic central air conditioning circulation and industrial liquid transmission. Such as demineralized water, soft water, purification system, light oil, etc. circulating, booster. Small central air conditioning circulation, cooling system, industrial cleaning, water treatment (purification of water), aquatic breeding, feeding/metering system, 7) environmental application

Driving motor:

Fully enclosed air-cooled motor with aluminum shell,

Safety grade: IP55, seal grade: F, voltage: 50Hz: 1× 220-240v 3× 220-240v 3× 380-415v
