• Product Name: CHLF light duty stainless steel multistage centrifugal horizontal pump
• Model Number: CHLF2-40
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

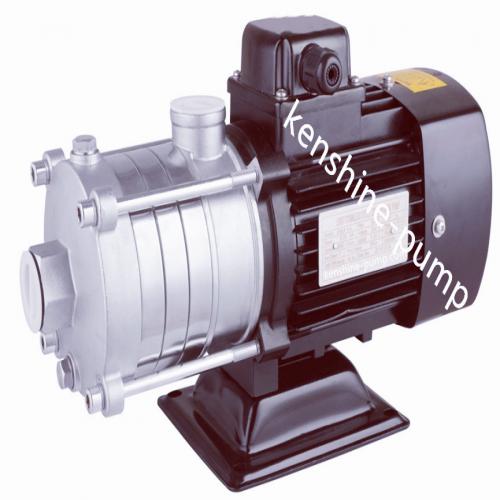

CHLF light duty stainless steel multistage centrifugal horizontal pump CHLF2-40 Description

CHLF type light duty stainless steel stage multi-stage centrifugal pump

CHL, CHLK and CHLF (T) light duty horizontal multistage stainless-steel centrifugal pumps are provided with a repair-free mechanical seal. The flow parts of the pump are made of stainless steel (304 or 316), with low noise, light corrosion resistance, beautiful appearance, small volume, light weight, long service life and other characteristics.

Application scope of CHLF type light-duty multi-stage stainless steel centrifugal pump

CHL, CHLK and CHLF (T) pumps are mainly used for domestic central air conditioning circulation and industrial liquid transmission such as demineralized water, soft water, purification system, light oil, etc.

1) small central air conditioning circulation

2) cooling system

3) industrial cleaning

4) water treatment (water purification)

5) aquaculture

6) fertilization/metering system

7) environmental application

Working conditions of CHLF type light stage multi-stage centrifugal pump:

A liquid that is thin, clean, does not condense, does not explode, and does not contain solid particles or fibers.

Liquid temperature: normal temperature from -15℃ to +70℃

Hot water +70℃ to +110℃

Maximum ambient temperature: +40℃

Maximum operating pressure: 10 bar

Maximum inlet pressure is limited by maximum operating pressure

Medium acid base: PH4~9

Motor for CHLF type light duty multistage centrifugal pump:

The motor is fully enclosed, air-cooled bipolar motor

Protection level: IP55

Insulation grade: F

Standard voltage,

50 hz/60HZ:

1 x 220-240 - v

3 x 220-240 - v

380-415 - v
