• Product Name: CDLKF Stainless steel immersible multistage pump
• Model Number: CDLKF3-150/15
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 600sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

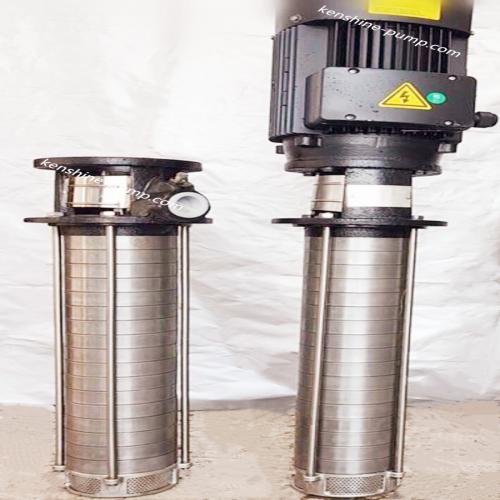

CDLKF Stainless steel immersible multistage pump CDLKF3-150/15 Description

CDLK, CDLKF submerged multistage booster pump is used in EDM industry, lathe industry, grinder industry, processing center, cooling equipment, etc. as the excellent hydraulic model in China. It is an ideal new generation of high efficiency multistage centrifugal pump.

The motor shaft is directly connected to the pump shaft by the coupling of the pump head. The pump can be equipped with intelligent protector as required to effectively protect the pump from idling, phase loss and overload.

To meet the installation depth of the tank or container, a cavity can be installed to change the length of the pump itself. The lengths of the different stages can be found in the size and weight sheets and in the list of available product ranges.

The pump is used to convey machine coolant, lubricating fluid, condensate, industrial cleaning equipment and other suitable immersion pumps. The pump has different temperature, flow and pressure ranges.

CDLK submerged multistage centrifugal pump is suitable for non - corrosive liquids conveying.  CDLKF stainless steel liquid pump is suitable to pump slightly corrosive liquid.

Application:

Used in electric spark, lathe, grinder, machining center, cooling device, industrial cleaning equipment, filtration system, etc.

Pumped fluids:

A thin, clean, non-explosive liquid without solids and fibers, capable of transporting water and coolant and cutting lubricants.

Liquids temperature:

Normal temperature type: -15 to 70 Degree Celsius

High temperature type: 70-120Degree Celsius.

Motor: 50/60HZ, 220V/380V etc , 1Phase/3Phase
