• Product Name: CDLF-JY low noise vertical stainless steel multistage pump
• Model Number: CDLF8-200
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

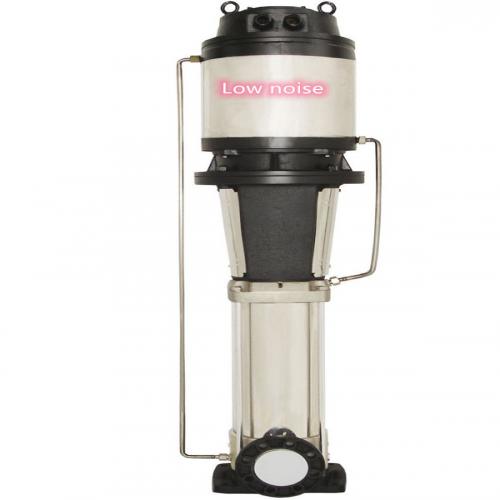

CDLF-JY low noise vertical stainless steel multistage pump CDLF8-200 Description

CDLF-JY water-cooled low noise vertical stainless steel multistage pump is an environmental protection product with more humanized design for the original CDLF stainless steel vertical multi-stage pump. Its biggest characteristic is its own internal circulation water-cooled system, the fluid through the internal circulation system takes away the motor heat to replace the fan cooling effect, at the same time the circulation of fluid effectively cut off the electromagnetic sound, thus greatly reducing the noise of the pump.  Pump is used to deliver the thin, clean, non-flammable liquid without solid particles or fibers. The pump can transport such as mineral water, softened water, pure water, clean oil and other light chemical media.

CDLF-JY pump is for non-self-priming vertical multistage centrifugal pump with water-cooled silent motor. The motor shaft is directly connected with the pump shaft through the coupling. The impeller guide blade is made of stainless steel stamping and welding or stainless steel precision casting.

Performance and advantages

Low noise, High efficiency and energy saving, Compact structure, convenient maintenance

Range of application

Industrial facilities, Water supply system, Water treatment, Cooling and air conditioning system

Water supply and drainage in high-rise buildings, Other low noise requirements in the application field

Technical parameters

Flow: 8m3/h to 150m3/h

Head: 15m to 305m

Power: 11kW to 45kW

Liquid temperature: -15℃ to +40℃

Frequency: 50 hz
