• Product Name: CDL,CDLF boiler feed water pump
• Model Number: CDLF3-230
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

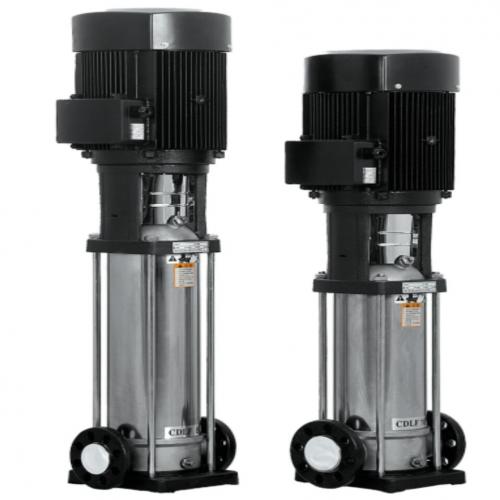

CDL,CDLF boiler feed water pump CDLF3-230 Description

Boiler feed water pump /multistage centrifugal vertical pump

CDL/CDLF is a non-self-priming multistage centrifugal vertical pump driven by a standard electric motor. The motor shaft is directly connected with the pump shaft through the shaft coupling. The pull rod bolt is fixed between the pressure-resistant cylinder and the flow parts in the pump head and the inlet and outlet water section, and the inlet and outlet water section is in the same straight line at the bottom of the pump.  Intelligent protector can be configured according to the need to effectively protect the pump dry rotation, lack of phase, overload, etc.

Application

Water supply: filtration and transmission in water plant, water supply in water plant area, boosting of main pipeline, booster in high-rise building.

Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.

Industrial liquid delivery: cooling and air conditioning systems, boiler water supply and condensation systems, machine tools, acid and alkali.

Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.

Irrigation: irrigation, sprinkler irrigation, drip irrigation in farmland

The pump is used to handle the thin, clean, non-flammable and non-explosive liquid without solid particles or fibers.

Normal temperature: -15 to 70 degrees Celsius.  Hot water: 70 to 120 degrees Celsius

Motor: IP55/F /1*220V/50HZ, 3*220V/380V/415V/50HZ

      IP55/F/3*220V/440V

Pump material: Stainless steel
