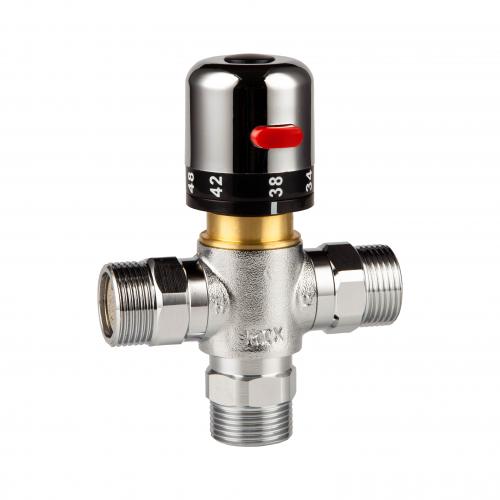

Brass Water Temperature Control Valve
- Product Name: Brass Water Temperature Control Valve
- Model Number: JD-HSF003
- Brand Name: JD
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 100
- Supply Capacity: 10000/month
- Payment: T/T, D/P, L/C, Paypal, Western Union
- MemberShip: Free Member
- Inquiry Now
Brass Water Temperature Control Valve JD-HSF003 Description
Temperature Inlet Cold Water: 5-29°c, Inlet Hot Water: 50-95°c, Mixing Water: 35-45°c, Adjustment Accuracy: ±2°c
The thickness of chrome plating Nickel ≥ 8μm, chrome ≥ 0.2μm
Water flow
26.67L/min in 1 Bar Water Pressure
| Working pressure | 0.03-1Mpa |
|---|---|
| Maximum working temperature | ≤99 C |
| Hot water inlet temperature range | 50-99 C |
| Cold water inlet temperature range | 5-29 |
| Outlet Temperature range | 35-55 C |
| Adjustment Accuracy | +/- 2 C |
| Rated outlet flow on 1 bar pressure drop | 26.67L/Min |
