BA horizontal cantilever centrifugal water pump 3BA-9 Description

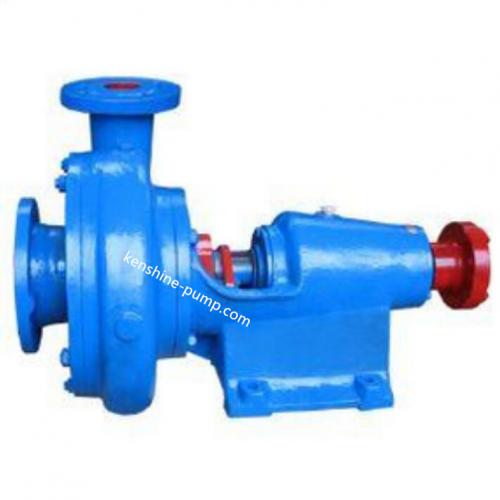

Horizontal cantilever centrifugal pump

BA type horizontal clean water centrifugal pump is a single stage single suction cantilever pump. BA clean water pump has the characteristics of easy installation, small size simple structure, light weight and so on. BA centrifugal pump can be used for conveying clean water and other liquid with physical and chemical properties similar to water.

Scope of Use:

BA Horizontal clean water pump is suitable for industrial and urban water supply and drainage, metallurgy, chemical industry, textile, papermaking, garden sprinkler irrigation, long-distance water transportation, HVAC refrigeration cycle, hotel and other boiler hot water pressurization cycle transportation and urban heating system, bathroom and other heating and cooling water pressurization circulation and equipment supporting, using temperature T≤80℃, hot water type is less than 120 degree Celsius

Structure

BA centrifugal pump has the counterclockwise rotation. It is particularly suitable for diesel engine as power, the main components of BA type centrifugal pump are: pump body (1);The pump cover (2);The impeller (3);Shaft (4);And the bracket (5).The outlet of the BA type centrifugal pump is in a vertical direction with the axis of the pump and it can be rotated 90 degrees, L80 degrees and 270 degrees with the pump body according to the installation and use conditions. The pump is directly rotated by the motor through the elastic coupling or by the belt transmission device.
