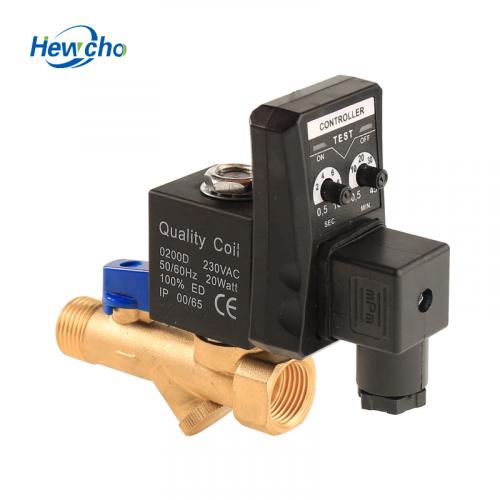

Auto Drain Water Brass 1/2" Filter Solenoid Valve With Timer Stainer WSV002 Description

WSV002 Auto Drain Water Brass 1/2" Filter Solenoid Valve With Timer widely used in air compressor, cooler, separator, dryer, filter, gas tank etcs compressed air system comonents, dischange time and the internal time can be adjuted.

WSV002 Automatic Water Drain Solenoid Valve match analogous circuit solid state electron timer with the solenoid valve to realize discharging the condensed water of compressed pneumatic system at fixed time automatically.



Feature

1.High quality, low cost.

2.One kind of model suits all applications, simple installment automotic, exempts maintains.

3.Interval time and discharge time can be adjustable and have test buttons.

4.Pressure 16 Bar, 40 Bar, 80 Bar. Many inds of voltages and connections to be chose.

5.CE certification, IP65 protection rank.

6.5.0mm large diameter. Viton sealing.

7.Ball valve filter, fission with drain valve, assumed L structure.

Place of Origin: China

Brand Name: Hewcho

Application: water control

Temperature of Media: Normal Temperature

Power: Solenoid

Media: Water,Gas,Air,Liquid

Port Size: 1/2"

Structure: Diaphragm

Product name: Auto Drain solenoid valve

Voltage: DC24V

Pipe Size: 1/2"

Temperature: -5-80℃

Sealing: NBR, EPDM, VITON

Starting Pressure: 0 Bar

Mode of Action: Direct Acting

Coil Protection: IP 65

Type: Auto Drain solenoid valve

Viscosity: Less than 20CST

Packaging & Delivery

Selling Units: Single item

Single package size: 13X9X6 cm

Single gross weight: 0.8 kg

Package Type: Auto Drain Water Brass 1/2" Filter Solenoid Valve Carton Box and Pallets

Size	1/2in
Type	SOLENOID VALVES
Material	Brass
Temperature of Media	Normal Temperature
Temperature	5-80℃
