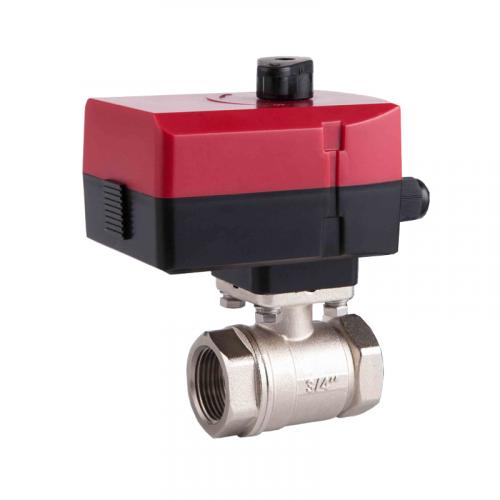

AQUA600-2 Series of Motorized Ball Valve
- Product Name: AQUA600-2 Series of Motorized Ball Valve
- Model Number: AQUA600-2
- Brand Name: OEM
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 100
- Supply Capacity: 10000/month
- Payment: T/T, D/P, L/C, Paypal, Western Union
- MemberShip: Free Member
- Inquiry Now
AQUA600-2 Series of Motorized Ball Valve AQUA600-2 Description
It is suitable for HVAC and status control of water system. Valve body is adopting ISO5211 standard platform, the actuator's using synchronous machine which drives the gears steady.
The new product is to be met the requirement of customers with compact size, large torque, simple operation and free maintenance, convenient for installation under different working conditions. In addition, the actuator is equipped with a manual handle, so it can open or close valve in case of the power cut or other emergency.
ItemPort sizeInchBody size(mm)N.W（g）
D1LH1H2
2wayAQUA600-2-15
DN15
1/25529.543.5230AQUA600-2-20DN203/4603351.5310AQUA600-2-25DN25170.53759.5490AQUA600-2-32DN321-1/485.54267.5
780
3wayAQUA600-3-20DN203/4
643348.5380AQUA600-3-25DN251743758580AQUA600-3-32DN321-1/487.54267.5800
| Driving mode | Electric/Manual,with Position indicator |
|---|---|
| PN Class | PN16 |
| Valve characteristic | 90°Rotary（ON-OFF Type） |
| Power supply | AC230V /24V AC |
| Torque | 12 Nm |
| Running time | 33～36 seconds |
| Valve platform | ISO5211（F03） |
| Cable length | 1.0 M x 4wires. |
Retaled category: Ball Valve
Hot search: motorized ball valve, ball valve, motorized valve
