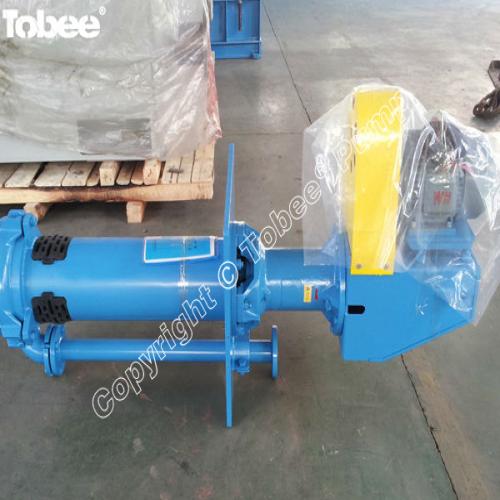

65QV-SP Vertical Slurry Pump 65QV-SP Description

65QV-SP Vertical Slurry PumpSPECIFICATIONS:Size: 65mm Capacity: 18-113m3/h Head: 5-31.5m Max.power:15kw Handing solids: 15mm Speed:700-1500rpm Submerged length:900-2800mm Materials:High chrome alloy, Rubber, Polyurethane etc

65QV-SP Vertical Slurry Pump is designed to handle diverse uses including all rugged mining and industrial applications, always ensuring reliable performance and excellent wear endurance. 65QV-SP vertical sump pumps are available in various standard lengths to suit common sump depths, offers a wide range of configurations allowing the pump to be tailored to a specific application. Wetted components are available in a wide range of alloys and elastomers. They are ideally suited for handling abrasive and corrosive liquids and slurries while submerged in sumps or pits.

Design Deatures:

• Compared to traditional sump pumps, SP series sump pumps have superb performance in capacity, head and efficiency.
• Unique cantilevered design makes EV series work normally even if the suction volume is not enough.
• Various pump models are available including traditional single-casing pumps as well as pioneering double-casing ones.
• Don’t need any seal and seal water.

Tobee® 65QV-SP Vertical Slurry Pumps Performance Parameters:

Model

Matching power P

(kw)

Capacity Q

(m3/h)

Head H

(m)

Speed n

(r/min)

Eff.η

(%)

Impeller dia.

(mm)

Max.particles

(mm)

Weight

(kg)

65QV-SP(R)

3-30

18-113

5-31.5

700-1500

60

280

15

500

Tobee® 65QV SP Vertical Slurry Pumps Applications:

The SP/SPR verical slurry pumps are available in a wide range of popular sizes to suit most pumping applications. The SP/SPR sump pumps are proving their reliability and efficiency worldwide in: minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation. The SP/SPR pump design with either hard metal (SP) or elastomer covered (SPR) components makes it ideal for abrasive and/or corrosive slurries, large particle sizes, high density slurries, continuous or “snore” operation, heavy duties demanding cantilever shafts.

Material	A05
