4-3C-AH Centrifugal slurry pump for Cleaning coal thickening cyclone 4x3C Description

Contact: Alice  Email:

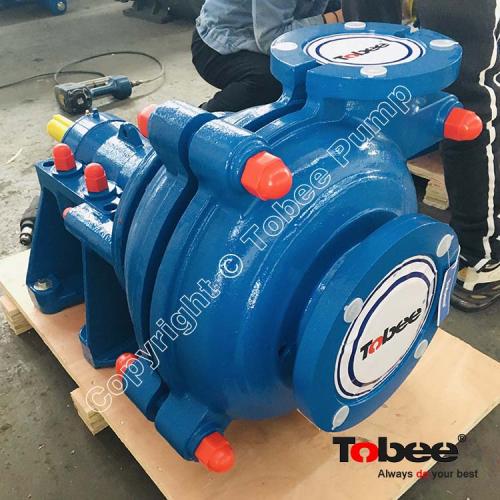

Tobee 3-inch slurry pumps mean the pump with a 3-inch outlet and 4-inch inlet. including model 4/3C-AH, 4/3C-AHR, 4/3D-AH, and 4/3D-AHR. 4/3DD Metal lined slurry pump, Rubber lined slurry pump, polyurethane lined slurry pumps. They are widely used in minerals processing.

4x3D-AHR Rubber Lined Slurry Pump is a heavy-duty slurry pump handling harsh and abrasive duties. Rubber slurry pumps are widely used for continuous pumping highly abrasive/dense slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage, dredging of settling lagoons and pumping of drilling mud and tailings in minerals plants and other industrial applications.

Design Features:

√ Double casings design centrifugal rubber lined slurry pump, wide passage for solids
√ Bearing assembly & frame: Both standard & high capacity types are available.
√ A large diameter shaft with a short overhang minimises deflection and vibration.
√ The heavy-duty roller bearing is housed in a removable bearing cartridge.
√ The rubber slurry pump body is fastened with the frame by minimum bolts.
√ Slurry pump impeller adjustment is provided in a convenient position below the bearing assembly.
√ Slurry Pump Impeller & liner material: natural rubber etc
√ High-efficiency impeller available: up to 86.5% for certain types.
√ Interchangeable wet parts material: High chrome alloy metal: PH: 5-12; natural rubber: PH Value 4-12.
√ Shaft seal: packing seal, centrifugal seal, mechanical seal.
√ Discharge branch: 8 positions in each 45°.
√ Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler etc.
