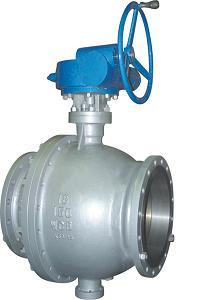

• Product Name: 3PC Cast Steel Trunnion Ball Valve
• Model Number: WZV-Q347F
• Brand Name: VK
• Place of Origin: Zhejiang, China
• Minimum Order Quantity: 10
• Supply Capacity: 10000Tons/Year/month
• Payment: TT, LC
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

3PC Cast Steel Trunnion Ball Valve WZV-Q347F Description

Trunnion Ball Valve WZV-Q347F

Specification:
Casting Steel Trunnion Mounted Ball Valve:
Casting steel body is popular for trunnion ball valve according to API 6D specification. Casting steel trunnion mounted ball valve has unique spring loaded seats which provide double-tight shut off and low operating torque. They are suitable for above-ground and under-ground service.

Product Description:
Casting Steel Trunnion Mounted Ball Valve:
Design: API6D/BS5351/ISO17292/GB12237
P - T Rating: ANSI B16.34/BS5351/GB12224
Face to Face: API 6D/ANSI B16.10/GB12221
Flange: ASME B16.5/JIS/DIN/GB/JB/HG

Design Features:
Full bore and reduced bore
Fire Safe design & tested to API 607 4th edition
(DBB) Double block & bleed
Cavity pressure self-relief
Emergency sealant injection system
Anti-static device (option)
Smooth & low torque operation
Suitable for NACE MR-01-75

Product Range:
Size: 2"-36"
Rating: 150LB-2500LB
Material: Carbon steel and stainless steel (ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, A351 CF8M, A351  CF3, CF3M)
Operation: Lever, Gear, Pneumatic & Electric devices.

Double Block and Bleed (DBB)
Emergency Sealant Injection System
Cavity Pressure Self-Relief
Fire Safe Design
Anti-Static Device (option)
Through Conduit (option)
Smooth & Low Torque Operation
