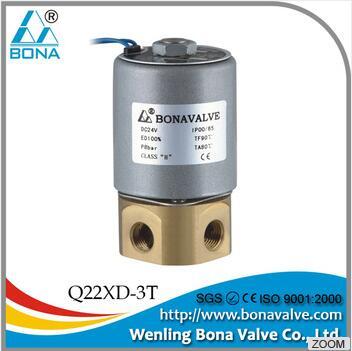

3 Port Brass automatic Welding Machine Plasma Cutter 12V 24V Air Electric Valve
- Product Name: 3 Port Brass automatic Welding Machine Plasma Cutter 12V 24V Air Electric Valve
- Model Number: Q22XD-3T
- Brand Name: BONA
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1 Piece
- Supply Capacity: 10000 Piece/month
- Payment: L/C,T/T,Western Union
- MemberShip: Free Member
- Inquiry Now
3 Port Brass automatic Welding Machine Plasma Cutter 12V 24V Air Electric Valve Q22XD-3T Description
Body material: brass
Structure: Direct action
Type: Normally cosed
Seal Material: NBR,EPDM,VITON
Port size: 1/8''
Port thread: G,NPT,PT
Orifice: 2.2mm
Temperature: 0°C to 80 °C
Medium: water, gas, steam,liquid..
Pressure: 0-1.0Mpa
Voltage: DC-12V,24V,42V / AC12V,24V,36V,42V,110V,220V/50HZ, / others upon request
Tolerance: ±10%
Coil: IP 65,100% ED
| Material | Brass |
|---|---|
| Pressure | Low Pressure |
| Temperature of Media | High Temperature |
| Port Size | 1/8" 1/4" M10x1 |
| Working Pressure | 0-8bar |
Retaled category: Solenoid Valve
Hot search: air electric valve, brass solenoid valve, brass valve
