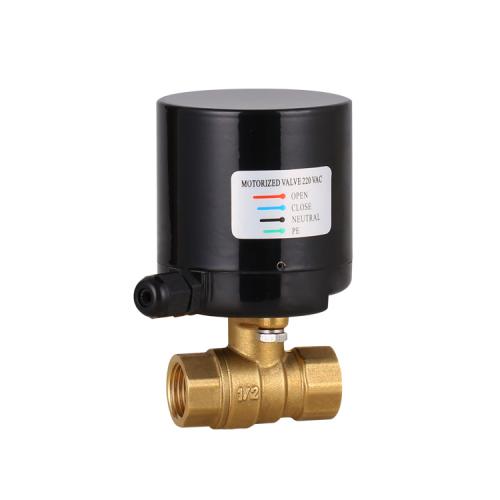

2/3 Series of Motorized Electrically Ball Valve
- Product Name: 2/3 Series of Motorized Electrically Ball Valve
- Model Number: JD100-2/3
- Brand Name: OEM
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 100
- Supply Capacity: 10000/month
- Payment: T/T, D/P, L/C, Paypal, Western Union
- MemberShip: Free Member
- Inquiry Now
2/3 Series of Motorized Electrically Ball Valve JD100-2/3 Description
KT100-2/3 series of motorized ball valve is suitable for HVAC and status control of water system. The actuator's using synchronous machine which drives the gears steady.
The new product is to be met the requirement of customers with compact size, large torque, simple operation and free maintenance, convenient for installation under different working conditions. And it has position indicator.
SizeDN15、 DN20、 DN25
Item:2 way
Item:3 way
JD100-2-X-220JD100-2-X-110JD100-2-X-24AJD100-2-X-24DJD100-3-X-220JD100-3-X-110JD100-3-X-24AJD100-3-X-24DVoltageAC220VAC110VAC24VDC24VCurrent0.04A0.08A0.3A0.05AWatts8W8W
7W1.2WTorque5Nm5Nm5Nm15NmSwitching time12s/24s12s12s15sRotate angle90°Working pressure≤1.6MpaMedium temperature-10℃～125℃Valve materal BRASS Thread endISO228IP classIp56
| Voltage | AC220V,AC110V,AC24V,DC24V |
|---|---|
| Rotate angle | 90° |
| Working pressure | ≤1.6Mpa |
| Medium temperature | -10℃～125℃ |
| Valve materal | BRASS |
| Thread end | ISO228 |
| IP class | Ip56 |
