• Product Name: 1W Single stage vortex pump
• Model Number: 32W-30
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

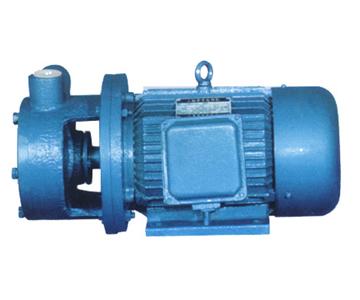

1W Single stage vortex pump 32W-30 Description

1W single-stage vortex pump is used to pump clear water and other liquids similar to water in physical and chemical properties .The liquid temperature shall not exceed 80 degree Celsius.

1W Single stage vortex pump is often used in boiler feed water of form a complete set, in shipbuilding, textile, chemical, metallurgy, machinery manufacturing, aquaculture, fixed fire control voltage, heat exchange unit remote sprinkler irrigation, agriculture and so on various industrial and agricultural departments with a wide range of applications.

Structure features:

1, Y series motors: connect directly with the water pump transmission power, using high-quality motor.

2. Pump shaft: it is an extended shaft of the motor to ensure the concentric shaft, so that the operation of the pump is balanced and noiseless. Chrome plating is adopted to increase the service life.

3. Water ring: prevent water entering into the motor due to leakage of seal.

4, pump body: clever design, both beautiful and efficient, enhance the pump operation stability and life.

5, special mechanical seal: long service life, no leakage, no wear on the shaft, no scale.

6, impeller: made of alloy copper. Milling with closed blade. High efficiency, high reliability, high accuracy of static and static horizontal shock detection, more balanced operation.

7, impeller key: tightly connected impeller and pump shaft, and easy to install and remove.

8,  0 ring seal: rubber products, effectively ensure the sealing of the pump.

9, pump cover: beautiful and efficient. Not only maintain the integrity of pump body seal, but also facilitate the installation and maintenance.

Model    Flow    Head    Speed    Motor power

（m3/h）    （m）    （r/min）    （kw）

1W2.4-10.5(single stage)    2.4    105    2900    3

1W2.5-12(single stage)    2.5    120    2900    3

25W-25(single stage)    1.44    25    2900    0.75

32W-30(single stage)    2.88    30    2900    1.5

32W-75(single stage)    2.88    75    2900    4

40W-40(single stage)    5.4    40    2900    4

40W-90(single stage)    5.4    90    2900    7.5

50W-45(single stage)    9    45    2900    5.5

65W-50(single stage)    14.4    50    2900    11

1.5BD-0.7(double stage)    2.4    105    1450    3
