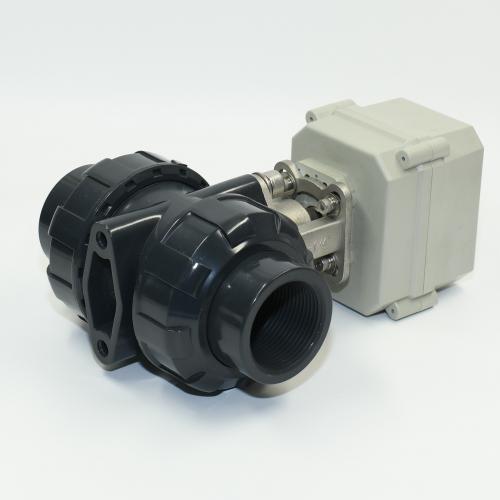

10N.m torque DC12/24V 2 wires control BSP/NPT 1 1/2'' UPVC Electric ball valve A100-T40-P2-C Description

Product Parameters:

Product sizeNPT/BSP  1-1/2''Maximum working pressure1.0MPa

Circulation medium

Fluid,airRated votageDC12V/DC24vWiring diagramCR201 Working current≤1AOpen/close time

≤15s

Life time70000times (testing pressure is 0.4MPa,medium is water)

Valve body material

PVC

Actuator material

PPOSealing material

EPDM&PTFE

Actuator Rotation90°Torque force:10N.m

Cable length

0.5m,1.5m(optional)Environment temperature-15℃~50℃Liquid temperature2℃~90℃Manual overrideNoOpen/close indicatorYesProtection classIP67Different valve sizes and wiring methods allowed, contact me for more information~





Packing method:

1pc/inner carton,3pcs/master carton,

Labels: Tonhe brand label, neutral label and customized labels (optional)

Special packing requirements and packing qty negotiable.



Inspection:  Air-tight test or water test before packing



Taizhou Tonhe Flow Control Equipment Co.,Ltd is located in a beutiful city Huangyan,Taizhou,Zhejiang,China, specialized in the development,design,manufacture,sales and technical servise of electric ball valve.Our products are exported to many contries and areas all over  the world,mainly in Europe&America,which won customer's trust and praise.





Application range:



1.air pump tank automatic drainage

2.automatic watering

3.water treatment

4.energy saving

5.industrial automation

6.other small equipments









Why us:



1. full stock and deliver within 5 working days.

2.OEM and ODM allowed, logo printing or oppointed design available

3.good quality, competitive price,professional sales team with  fast response and reliable service

4.professional production team and inspection team

5.Counting cheapest shipping cost for you and make invoice at once

6.Email tracking No.for better tracing parcels.



Contact way:

Sales: Esther

Email: tonhe07@china-tonhe.com

Mob.: +86 18072535389(wechat)

Taizhou Tonhe Flow Control Equipment Co.,Ltd

Maximum working pressure	1.0MPa
Open/close time	less than 15s
Valve body material	UPVC
Actuator material	PPO
Torque force	10N.m
Working temperature	5~55℃
Indication Window	Yes
Protection	IP67
