• Product Name: Wcb A105 Ceramic Lining Pneumatic Flanged Ball Valve
• Model Number: FRQ641TC
• Brand Name: FREE-VALVE
• Place of Origin: Henan, China
• Minimum Order Quantity: 1
• Supply Capacity: 200 set/month/month
• Payment: TT,LC
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

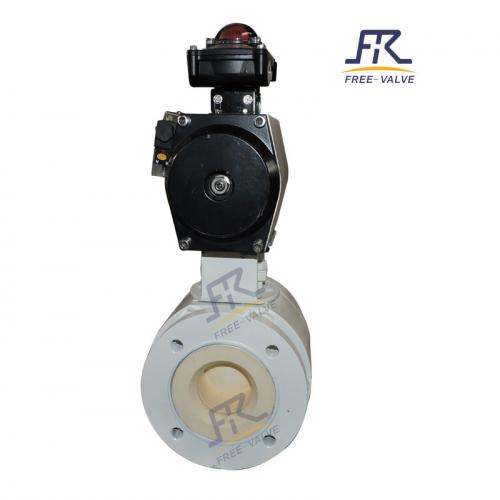

Wcb A105 Ceramic Lining Pneumatic Flanged Ball Valve FRQ641TC Description

FREE-VALVE’s  A105 Ceramic Lining Pneumatic Flanged Ball Valves are designed with engineering ceramics   the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content.

Features:

1.The hardness of the ceramic material can be higher than HRC80.

2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.

3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric and hydraulic actuators

4.Customized V type ceramic control valve is also available.

5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.

Technical Specification

Flange Standards ASME B16.5,GB/T9113

Nominal Pressure 1.0MPa,Class150

Size Range :DN50~DN 200, NPS2 ~NPS8

Connection type Flange

Working Temperature ≤200℃

Operating Type: Manual, Pneumatic and Electric

Sealing surface material:Engineering ceramic

Ball material:Zirconia ceramic

Pressure test GB/T13927, API598

Face to Face GB/T12221, ASME B16.10

Application

FREE-VALVE’s A105 Ceramic Lining Pneumatic Flanged Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2  powder equipment.

Model：FRQ341TC、FRQ641TC、FRQ941TC

Price terms:FOB,CIF,FCA,CFR

Price:800-20000USD/set

Origin:China

Brand:FREE-VALVE

Wechat ID:FreeValve
