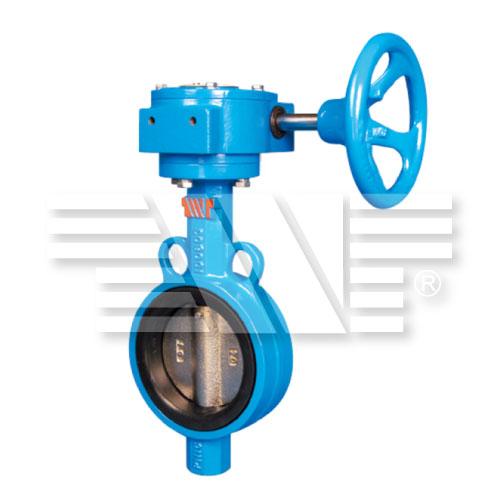

Wafer Type Concentric Butterfly Valve
- Product Name: Wafer Type Concentric Butterfly Valve
- Model Number: WTBV
- Brand Name: TWT
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 100
- Supply Capacity: 10000/month
- Payment: T/T, D/P, L/C, Western Union
- MemberShip: Free Member
- Inquiry Now
Wafer Type Concentric Butterfly Valve WTBV Description
The Wafer Type Concentric Butterfly Valve is applicable for regulating or cutting off medium in pipeline.
Suitable for manual handle operation (DN50~300) as well as worm-gear, electric and pneumatic operation.
The design and manufacture complies with API 609 standard.
Pressure test is in accordance to API 598 standard.
The structure length is in accordance to API 609.
Side flange standard is in accordance to GB/T17241 PN1.0MPa, PN1.6MPa and ASME B16.1 125PSI.
| Application | Water Industrial Usage, Industrial Usage |
|---|---|
| Pressure | Pn1.0 ~ 1.6 MPa |
| Temperature of Media | -10~120℃ |
| Structure | Butterfly |
| Operation | Lever, Gear, Pneumatic, Electric, Hydraulic |
| Material | CS DI SS Al-Bronze |
| Media | Water Oil Gas etc. |
