Tobee wear parts Impeller G12147A05A of 14x12G-AH Slurry Pump
- Product Name: Tobee wear parts Impeller G12147A05A of 14x12G-AH Slurry Pump
- Model Number: 14x12G-AH
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
Tobee wear parts Impeller G12147A05A of 14x12G-AH Slurry Pump 14x12G-AH Description
Sales7(at)tobeepump.com

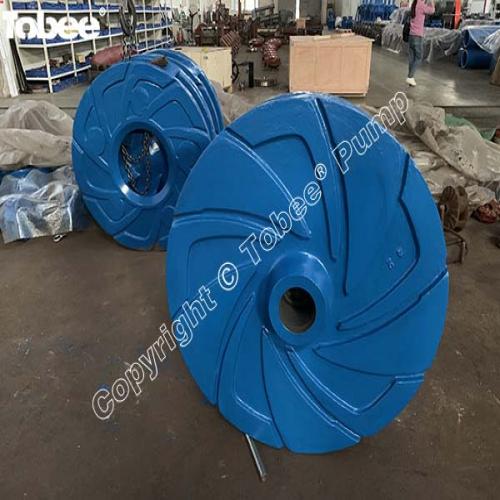

Tobee® Slurry pump Impeller G12147A05A is the most diverse component in 14x12G-AH Slurry Pumps, by changing impeller,
the same slurry pump can cover more different duties. And they are
normally made in high chromium alloys or natural rubber, special
materials are also available.
Tobee® offers three different types of slurry pump impellers: open, closed, and semi-open, and slurry pump impellers are made of high chrome alloy, rubber, elastomer, polyurethane, ceramic and some other customized materials to meet any mines site conditions and be suitable for your existing slurry pumps.
Tobee® Pump accept OEM casting parts as samples or drawings of all kinds of AH slurry pump parts, SP vertical pump parts, G sand pump parts, Damen dredge pump parts, IHC dredge pump parts, Andritz pump parts, etc. For the material codes of the impellers, we can manufacture A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 from 1.5/1 to 20/18 Slurry Pumps. For the impeller type, we xan manufacture WRT1, Back Full(BF), Back Remove(BR), Seal Remove(SP), Efficient(HE). Such as:D3145WRT1A05,D3145WRT1BFA05,E4145WRTA05,E4145WRT1A61, F6145WRT1A05,G12145WRT1A05,CAHF2056QU1A05,FAHF6056QU1A05,B1052R55,RSL3014BRU38.
Slurry impellers are more commonly of the closed type (with a front shroud) but open type impellers (without a front shroud) are sometimes used for special applications.
Impellers are generally closed because of higher efficiencies and are less prone to wear in the front liner region. Open impellers are more common in smaller pumps or where particle blockage may be a problem or where the shear provided by an open impeller is an aid to pumping froth.
Another feature of slurry pump impellers is the pump out or expelling vanes on the back and front shrouds. These perform the dual function of reducing pressure (thus inhibiting recirculating flow black to the impeller eye, and reducing stuffing box pressure) and keeping solids out of the gaps between the casing and impeller by centrifugal action.
