Tobee E005M Bearing Assembly for 8/6E-AH Slurry Pump
- Product Name: Tobee E005M Bearing Assembly for 8/6E-AH Slurry Pump
- Model Number: 8/6E-AH
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
Tobee E005M Bearing Assembly for 8/6E-AH Slurry Pump 8/6E-AH Description
Email: Sales7(at)tobeepump.com

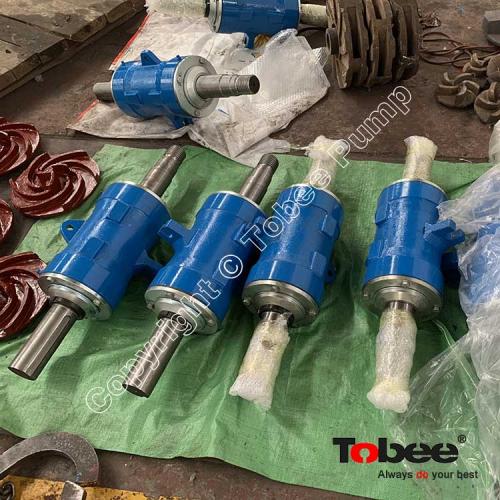

Bearing Assembly E005M is the best important parts for 8/6E-AH Horizontal Slurry Pumps.
Slurry Pump Bearing Assembly also called rotor assembly, It is a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame. It is most important part for drive power unit. The bearing assembly is to connect the slurry pump and motor as a complete pump working system. Its stability will directly affect slurry pump operation and work-life.
Slurry pump bearing assembly has a large diameter shaft with a short overhang minimizes deflection and vibration. Slurry pump bearing assembly has two sets of single row tapered roller bearings which are face-to-face installed in a removable bearing housing, high capacity bearing assembly has one set of double-row tapered roller bearing installed near the slurry pump impeller and one or two sets of cylindrical roller bearing installed near the motor. Standard and high capacity bearing assemblies are dimensionally interchangeable.
