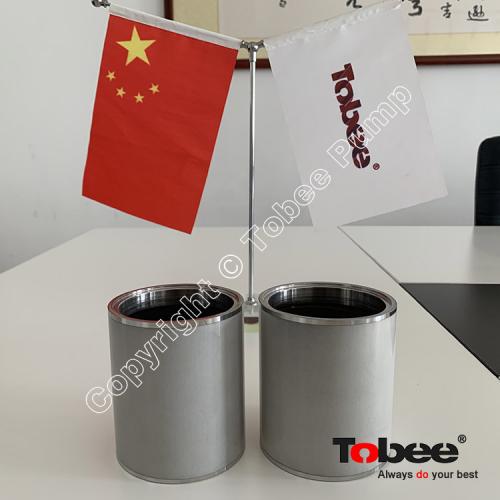

Tobee Ceramic Shaft Sleeve D075J04 for 4/3 DAH Slurry Pump
- Product Name: Tobee Ceramic Shaft Sleeve D075J04 for 4/3 DAH Slurry Pump
- Model Number: 4/3 DAH
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
Tobee Ceramic Shaft Sleeve D075J04 for 4/3 DAH Slurry Pump 4/3 DAH Description
Sales7(at)tobeepump.com
D075J04 White Ceramic Shaft Sleeve can replace the standard Shaft Sleeve D075C21 for 4x3D-AH Slurry Pumps and 6x4D-AH Slurry Pump.
Slurry Pump Ceramic Shaft Sleeve, which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly. Tobee's slurry pump ceramic shaft sleeves are precision formed of high density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower co-efficient of friction, results in extended sleeve life and long service from the packing.
One of the problems of concern to operators of centrifugal slurry pumps is the wear of shaft sleeves and the deterioration of packing material in the gland.
This matter has also been under study by the Materials Research and Development Department of TOBEE PUMP for some time. The result is the development of a shaft sleeve of much superior wearing qualities.
Tobee® Slurry Pump Ceramic Shaft Sleeve, which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly.
Slurry Pump Steel Shaft Sleeve has always been the here-to-fore accepted material for shaft sleeves for most centrifugal slurry pumps. However, steel in shaft sleeves is subject to pitting, fritting and wear that often results in short part life.
Tobee® offers part codes for ceramic shaft sleeves include: B075J04, B075J05, C075J04, C075J05, CH075J04, CH075J05, CH076J04, CH076J05, D075J04, D075J05, E075J04, E075J05, F075J04, F075J04, FAM075J04, FAM075J05, PE075J04, PE075J05, PF075J04, PF075J05, G075J04, G075G05, SH075J04, SH075J05, SH076J04,SH076J05, GH075J04, GH075G05, GH076J04, GH076J05
