Tobee B063 Slurry Pump Lantern Ring for 2/1.5B-AH 2/1.5B-AH Description

Email: Sales7(at)tobeepump.com

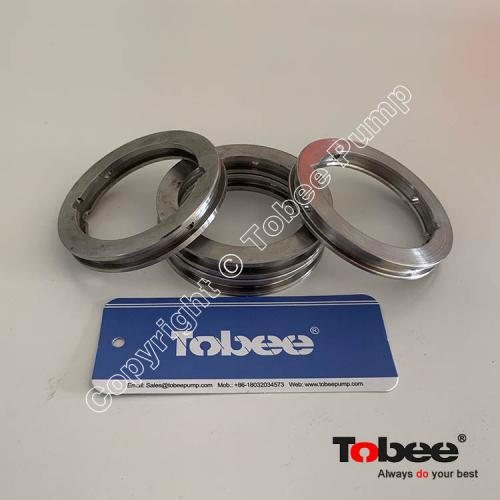

Tobee Slurry Pump Lantern Ring B063, C063, D063, E063, F063, G063 are 100% interchangeable with original standard Pump Lantern Rings.



Slurry Pump Lantern Ring is a ring or sleeve around a rotating shaft, There is an hole in the ring provides for forced feeding of oil or grease to bearing surfaces, It is designed for water sealing function for reducing leakage,  Particularly the lantern ring is effective for cooling, and lubrication, It is usually used in packing seal and expeller seal.



Slurry Pump Lantern Ring Codes:

Lantern Ring Code

AH Slurry Pumps

Slurry Pump Materials

B063

1.5/1B-AH, 2/1.5B-AH

SS321

C063

3/2C-AH, 4/3C-AH

SS321

D063

4/3D-AH, 6/4D-AH

SS321

E063

6/4E-AH, 8/6E-AH, 8/6R-AH

SS321

G063

10/8F-AH, 10/8ST-AH, 12/10ST-AH, 14/12ST-AH

SS321

H063

16/14TU-AH, 18/16TU-AH, 20/18TU

SS321

Lantern Ring Code

HH Slurry Pumps

Slurry Pump Materials

CH063

1.5/1C-HH

SS321

D063

3/2D-HH

SS321

E063

4/3E-HH

SS321

F063

6/4F-HH

SS321

Lantern Ring Code

M Slurry Pumps

Slurry Pump Materials

E063

10/8E-M, 10/8R-M

SS321

Lantern Ring Code

L Slurry Pumps

Slurry Pump Materials

A063

20A-L

SS321

BSC063

50B-L

SS321

C063

75C-L

SS321

D063

100D-L

SS321

E063

150E-L

SS321

S063

300S-L

SS321

Lantern Ring Code

G(H) Gravel Pumps

Slurry Pump Materials

D063

6/4D-G

SS321

E063

8/6E-G

SS321

F063

10/8F-G, 10/8S-G, 10/8S-GH

SS321

G063

12/10G-G, 14/12G-G, 12/10G-GH

SS321

H063

16/14TU-GH

SS321
