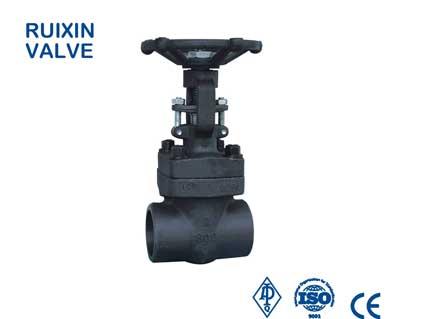

Threaded Forging Gate Valve
- Product Name: Threaded Forging Gate Valve
- Model Number: G112
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
Threaded Forging Gate Valve G112 Description
Product DetailsSize1/2 inch ~ 2 inch
Pressure Rating
150LB ‐ 4500 LB
Standard Connections
NPT,BSP,SW,BW
Material
Body/ Bonnet: A105, A350 LF2 , A182 F11, F22, A182 F304, F316 , F316L. A182 F51. Monel, 20# Alloy, Etc
Seat: A105+13CR / A105+STELLITE 6,ETC
Stem: A182 F6(13CR) / A182 F304/F316
Trim: NO.1 ‐ NO.14
Features And Benefits
Bolted Bonnet
Full or Reduce Bore
Solid Wedge Disc, Integral Seat
Standard
Design & Manufactures: API 602
Face To Face :ANSI B16.10
Screwed Ends To ASME B1.20.1 , BW Ends To ANSI B16.25 ,SW Ends to ASME B16.11
Checking & Test : API 598
NACE MR-01-75
Other sizes and pressure classes available. Contact the company for specifications.
