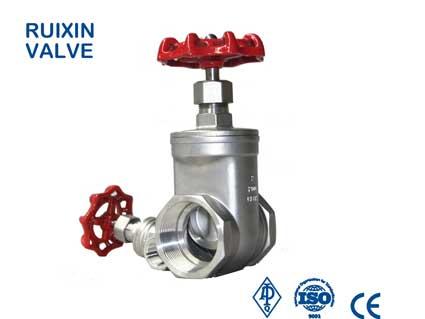

Threaded Casting Gate Valve
- Product Name: Threaded Casting Gate Valve
- Model Number: G113
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
Threaded Casting Gate Valve G113 Description
Product DetailsSize1/2 inch - 4 inch
Pressure Rating
200 PSI
Standard Connections
Threaded (BSP. NPT. PT. DIN 259, 2999)
Material
Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB
Features And Benefits
Full Bore
Non‐Rising Stem and HandWheel
Solid Wedge Disc, Integral Seat
Temperature range: -60 to 450 °F
100% leakage tested
Standard
Design : ASME B16.34
Thread Acc: ANSI B1.20.1
Checking & Test : API 598
Other sizes and pressure classes available. Contact the company for specifications.
