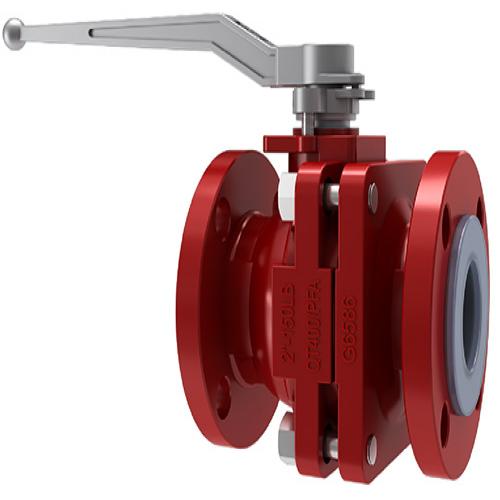

PFA FULL LINED BALL VALVE
- Product Name: PFA FULL LINED BALL VALVE
- Model Number: PFA Lined Ball Valve CF8 Material
- Brand Name: YFM
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 10000/month
- Payment: T/T
- MemberShip: Gold Member
- Inquiry Now
PFA FULL LINED BALL VALVE PFA Lined Ball Valve CF8 Material Description
PFA Lined Ball Valve SS304 Body
Features:
1. Size: 1/2-16"
2. Body: WCB(CAST STEEL), CF8, CF8M, CF3, CF3M
3. Lining material: PFA, FEP, PTFE
4. CLASS: PN1.0 PN1.6 150LB
Standard compliance:
1. ) Design and manufacture: ANSI B16.34, or DIN, JIS
2. ) Face to face dimensions: ANSI B16.10 GB12221
3. ) End flange dimensions: ANSI B16.5 JB78, DIN, JIS
4. ) Test: API 6D or API 598
Type of operation:
1. ) Lever
2. ) Connection dimension of worm gear actuator, electric actuator, pneumatic actuator to ISO 5211 standard
| SIZE | 1/2"-16" |
|---|---|
| BODY MATERIAL | PFA, FEP, PTFE |
| PRESSURE | PN1.0 PN1.6 150LB |
