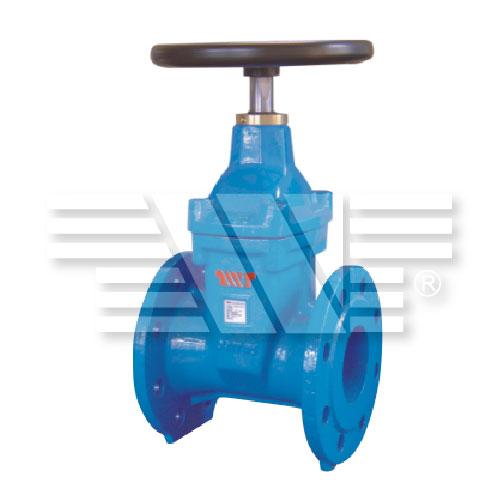

Non-Rising Soft Seated Gate Valve
- Product Name: Non-Rising Soft Seated Gate Valve
- Model Number: NRSSGV
- Brand Name: TWT
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 100
- Supply Capacity: 10000/month
- Payment: T/T, D/P, L/C, Western Union
- MemberShip: Free Member
- Inquiry Now
Non-Rising Soft Seated Gate Valve NRSSGV Description
The Non-Rising Soft Seated Gate Valve has a simple and compact structure, easy to operate, easier to install and disassemble, easy to maintain a reasonable design, large circulation area, smooth transition of diameter, no dirt accumulation phenomenon, less circulation resistance.
Elastic seal, 0 leakage, long service lifeThe valve inside and outside spray epoxy resin hengliaojing layer, the gate cladding rubber, does not pollute the medium.Small operating torque, easy opening and closing.Soft Seal Gate Valves can also be used as clearing valves. ·The disc above the DN300 caliber is equipped with a wedge-shaped plastic guide shoe (sliding boot structure) to reduce the operating torque and reduce the opening and closing to the rubber wear.
| Application | Water Industrial Usage, Industrial Usage |
|---|---|
| Pressure | Pn1.0 ~ 1.6 MPa |
| Temperature of Media | -10ºC ~ 180ºC |
| Structure | Gate Valve |
| Operation | Lever, Gear, Pneumatic, Electric, Hydraulic |
| Material | Bronze, Hard Alloy, Ductile Iron, Cast Steel, Stainless Steel, NBR, EPDM |
| Media | Water Oil Gas etc. |
| Connection Mode | Flange |
