Impeller 19206-80-30 for Nov Mission Pump 4x3-12''
- Product Name: Impeller 19206-80-30 for Nov Mission Pump 4x3-12''
- Model Number: 4x3x13
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
Impeller 19206-80-30 for Nov Mission Pump 4x3-12'' 4x3x13 Description
Email:
Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.store | www.tobee.cc | www.hydroman.cn

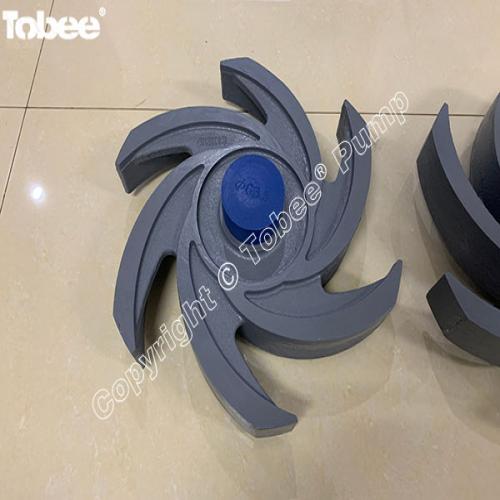

Mission Magnum Pump 4x3-12'' Impeller P/N 19206-80-30 with Hard Iron material.
Tobee® provides impellers for Mission Magnum centrifugal pump 4x3x13:
19206-90-30 Impeller 4 x 3 – 13''
19206-80-30 Impeller 4 x 3 – 12''
19206-70-30 Impeller 4 x 3 – 11''
Fully open impeller, best design for the chemical process industries services. Ideally suited for corrosives and abrasives, handles solids and stringy fibers with ease. Allows for simple restoration of clearances when wear takes place. Back pump-out vanes reduce pressure on the shaft seal, reduce axial thrust on the bearings.
Part size cast into the impeller. This makes part identification easier.
Impeller gasket in included with impeller
All impellers are dynamically balanced
Offered Hard iron and other materials upon request
All impellers are investment casted or resin-casted with pickling (acid washing) as our power-end parts, which are also available in cast steel in favor of ductile. All other sizes are resin-casted with pickling (acid washing) to ensure smooth surface finish. To ensure quality, we meticulously check threaded holes by fitting their bolts to ensure the threads are clean and clear. All casings are of course pressure tested and all impellers and dynamic balanced. Each casing is properly pressure tested prior to shipping.
Our impellers are comparable to famous pump brands such as NOV Mission Magnum® and MCM.
