• Product Name: HIG-009 brass gas ball valve
• Model Number: HIG-009
• Brand Name: HIG
• Place of Origin: Shanxi, China
• Minimum Order Quantity: 100 Pieces
• Supply Capacity: 500 Tons/month
• Payment: L/C,D/P,T/T
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

HIG-009 brass gas ball valve HIG-009 Description

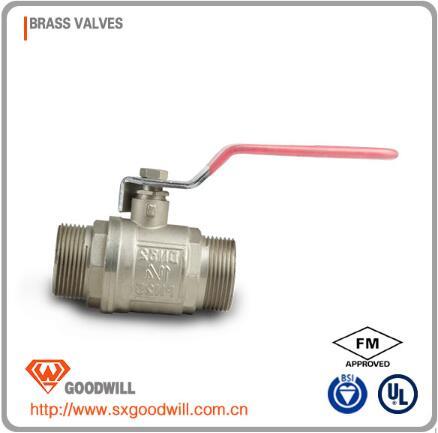

HIG-009 brass gas ball valve

Model: 1.pc ball valve 2.pcs ball valve 3.mini ball valve

Joint method:(FF,MM,FM)Threaded,Butt-Welded,Clamped-Package,Flange ball valve

Surface: Nickel, Brass, Chrome

Size Range: 1/2"3/4",1",11/4",11/2",2",21/2",3",31/1",4"5",6"

Working pressure: Forged, Casting

Working Temperature: PTFE≤150℃ PPL≤300℃ Carbon Fibre≤350℃

Applicable Medium: Water/Oil/Gas

Bore/port: Standard Bore,Full Bore,Half Bore,Reducing Bore

Threaded: NPT,BSPT,DIN2999,DIN259, ISO228

Material Speciafications

Body: Brass,Stainless Steel,Carbon Steel

Bonnet/cap: Brass

Ball: Brass

Ball seat: EPDM, PTFE

Thrust washer: PTFE

Stem: Steel, Brass

"O"Ring: PTFE

Handle/lever: Steel,Alloy,Carbon Steel, Iron,Stainless Steel

Handle/lever function: (Optional)Locking device handle

Handle/lever shape: Butterfly,Flat,Drawn

Handle/lever Cover: PTFE

Seal gasket: PTFE

Stem packing(up,middle,bottom): PTFE

Screw/Blot: 304

Nut: Iron,304

stem washer: Brass

MM / FM Thread: Thread to ISO228/1, BSP, NPT, etc

Applications: Steam, air, gas and oil pipes or for many other fluids
