• Product Name: Fluorine Lining Ball Valve Used in Corrosive Medium
• Model Number: FRQ41F46
• Brand Name: FREE-VALVE
• Place of Origin: Henan, China
• Minimum Order Quantity: 1
• Supply Capacity: 200 set/month/month
• Payment: TT,LC
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

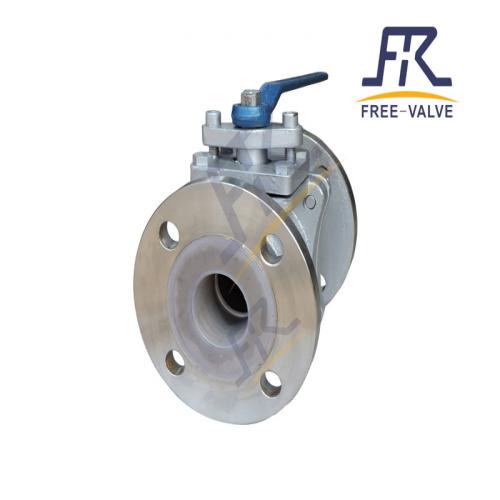

Fluorine Lining Ball Valve Used in Corrosive Medium FRQ41F46 Description

FREE-VALVE’s fluorine lining ball valve is lined with corrosion resistance,aging resistance of PTFE/F46, has the corrosion resistance and reliable sealing to acid, alkali and other corrosive medium.Features of fluorine lining ball valve is zero leakage with superior sealing performance.Fluorine lining ball valve adopts fluorine plastic as liner and equipped with new type structure of the ball integrated with stem,it provides itself all the advantages of general ball valve.

Features:

1. Two pieces full port standard lined ball valves offer high stability, rigidity and eliminating potential leak path.

2. Full bore design almost no fluid resistance, and good shut-off performance.

3. The valves can work as on-off or control valve.

4. The valves can sustain any corrosive medium.

Technical Specification

1) Size Range: DN15~DN350

2) Pressure Range: Class 150 /PN6 /PN10

3) Connection Type: Flange

4) Lining Material:PTFE , PFA , FEP

5) Body material:WCB, CF8 ,CF8M

6) Pressure test:GB/T13927, API598

7) Face to Face: GB/T12221, ASME B16.10

8) Operating Mode: Manual lever , Worn gear ,Electric ,Pneumatic

Application

FREE-VALVE’s fluorine lining ball valve are widely used in chemical, petroleum, metallurgy, electric power industry.

Model：FRQ41F46

Price:100-5000USD/set

Payment terms:TT,LC

Price terms:FOB,CIF,FCA,.CFR

Delivery time:30days

Origin:China

Brand:FREE-VALVE

Wechat ID:FreeValve
