• Product Name: Ceramic Ball Valves
• Model Number: FRQ641TC
• Brand Name: FREE-VALVE
• Place of Origin: Henan, China
• Minimum Order Quantity: 1
• Supply Capacity: 200pieces/month
• Payment: T/T, L/C
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

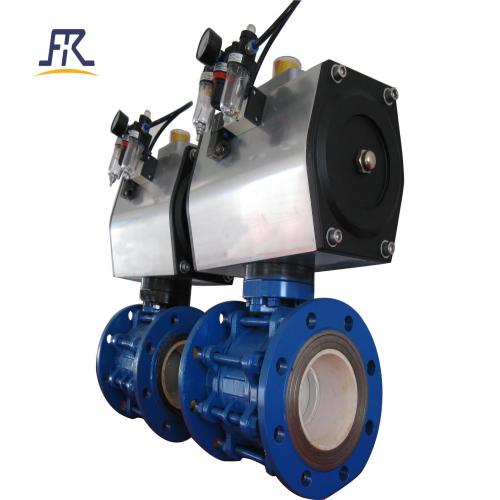

Ceramic Ball Valves FRQ641TC Description

FREE-Valve's Ceramic Ball Valves are designed with engineering ceramics   the engineering ceramics internal parts provide excellent wear resistance, the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content.

Features:

1.The hardness of the ceramic material can be higher than HRC80.

2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.

3.Customized actuation types are installed on the ceramic ball valve, the manual lever or gear box, as well as with pneumatic, electric and hydraulic actuators

4.Customized V type ceramic control valve is also available for us.

5.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.

Technical Specification:

The standards of flange ends ASME B16.5,GB/T9113

Nominal Pressure 1.0MPa,Class150

Size Range DN50~DN 200, NPS2 ~NPS8

Connection type Flange

Working Temperature ≤200℃

Operating Type Manual, Pneumatic and Electric

Sealing surface material Engineering ceramic

Pressure test GB/T13927, API598

Face to Face GB/T12221, API609

Application

FREE- Valve’s Ceramic Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2  powder equipment
