• Product Name: BUTTERFLY VALVE API609
• Model Number: WAFER TYPE
• Brand Name: DMS,OEM european brand
• Place of Origin: Zhejiang, China
• Minimum Order Quantity: 1
• Supply Capacity: 30000/month
• Payment: T/T,L/C,WEST UNION
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

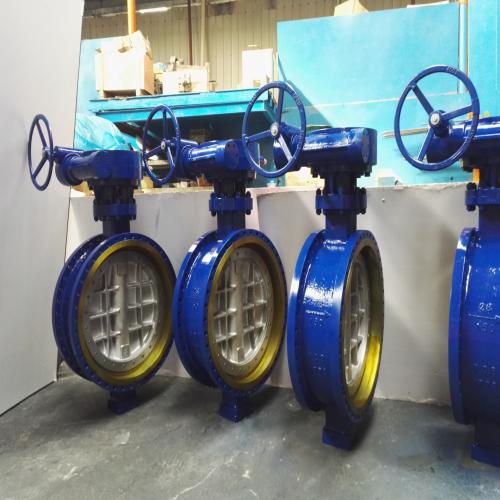

BUTTERFLY VALVE API609 WAFER TYPE Description

Product name: butterfly valve.

Type: Full port design
wafer type,Lugged type,flanged type,

Eccentric type,concentric type,triple eccentric type.high performance type

Design:API609
Material:B61,B62,copper,WCB,LCB,LCC,WCC,WC5,C5,WC6,WC9,WC11,WC12,CF8,CF8M,CF3,CF3M,CD-4MCU,SS2205 etc.
Nominal size: 2”-60” Inch.
Nominal class: 150LB-300lb

Lever type,Gear Operated.electric actuator, pneumatic actuator,hydraulic actuator etc.

HS Code: 84813000
End Connection: RF flange.wafer type,Butt Welded connection.
DESIGN STANDARD
Design & manufacture according to API 609, AWWA C504, ASME B16.34
Face-to-face according to API 609, ASME B16.10
 End Connection according to ASME B16.5 (RF, RTJ), ASME B16.47 (RF,RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW), AWWA A207
 Test & inspection according to API 598

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.duplex stainless steel,B61,B62,copper,WCB,LCB,LCC,WCC,WC5,C5,WC6,WC9,WC11,CF8,CF8M,CF3,CF3M,CD-4MCU,SS2205
 etc.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: wafer , Flanged.
Pressure range: 150 - 300 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
