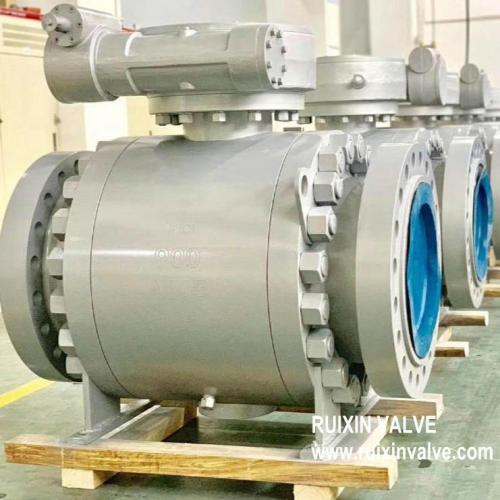

API6D&API608 3PC Trunnion Mounted Ball Valve
- Product Name: API6D&API608 3PC Trunnion Mounted Ball Valve
- Model Number: B1001
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T,L/C,Western Union
- MemberShip: Free Member
- Inquiry Now
API6D&API608 3PC Trunnion Mounted Ball Valve B1001 Description
Product DetailsSize2 inch - 24 inch
Pressure Rating
150LB - 2500 LB
Standard Connections
Flanged Ends (RF,FF)
Material
Body/Bonnet: A216WCB ,A351 CF8 ,A351 CF8M,A351 CF3,A351 CF3M,A351 CF8C,A352 LCB ECT
Ball :A105+ENP,13CR, A351 CF8(A182 F304),A351CF8M(A182 F316) ,ETC
Seat: PTFE, RPTFE, PEEK,NYLON Or Metal to Metal
Features And Benefits
Full Bore
Trunnion Mounted Ball,Hollow Or Solid Ball
Fire Safety Seat Sealing
Replaceable Seat
Anti-Static Spring Device
Blow-out proof stem
Low Emission
Double Block and Bleed
Operated by Lever ,Electric.Pneumatic Actuator
Standard
Design and Manufactures: API 6D/ ASME B16.34/ BS 5351/ API 608
Face To Face :ANSI B16.10
End Flange Dimension : ANSI B16.5
Fire Safe : API 607 Or API6FA
Checking & Test : API 598
Pressure-Temperature: ASME B16.34
NACE MR-01-75
Other sizes and pressure classes available. Contact the company for specifications.
| Type | Split Body |
|---|---|
| Seat | Fire safety seat sealing |
| Stem | Blow-out proof stem |
