• Product Name: API6D CHECK VALVE
• Model Number: flanged type
• Brand Name: DMS,OEM european brand
• Place of Origin: Zhejiang, China
• Minimum Order Quantity: 1
• Supply Capacity: 30000/month
• Payment: T/T,L/C,WEST UNION
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

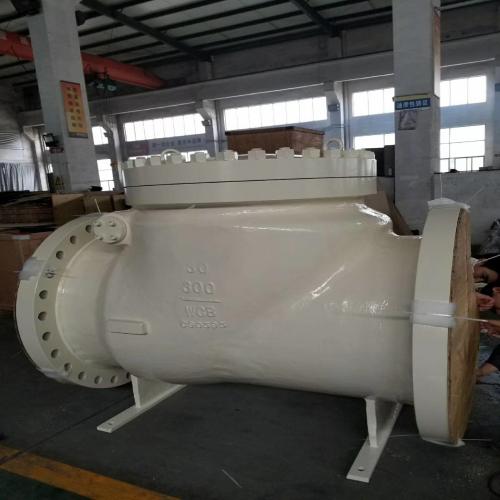

API6D CHECK VALVE flanged type Description

Product name: Check valve.

Type: Check Valve Full port design,bolt bonnet type,pressure sealed type.
Piston type,swing type,lift type,dual plate wafer type,single plate wafer type
Design: BS1868.API6D

Material:Available in Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,F904), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Nominal size: 2”-48” Inch.
Nominal pressure class: CLASS 800LB, 150LB, 300LB,600LB,900LB,1500LB, 2500LB

HS Code: 84813000
End Connection: RF flange.wafer type,Butt Welded connection.

DESIGN STANDARD

Design & manufacture according to API 6D, BS 1868,API594

Face-to-face according to ASME B16.10

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.duplex stainless steel,B61,B62,copper,WCB,LCB,LCC,WCC,WC5,C5,WC6,WC9,WC11,CF8,CF8M,CF3,CF3M,CD-4MCU,SS2205
 etc.
Normal diameter: 2 - 48 Inch (DN50 - DN800).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.
