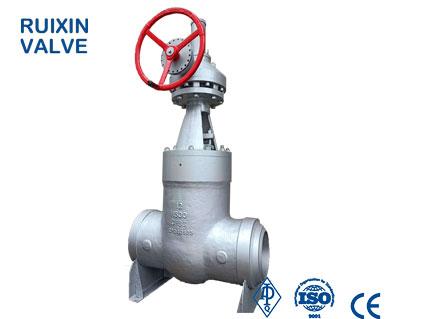

API Pressured Sealed Seat Gate Valve with BW Ends
- Product Name: API Pressured Sealed Seat Gate Valve with BW Ends
- Model Number: G115
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
API Pressured Sealed Seat Gate Valve with BW Ends G115 Description
Product DetailsSize2“ - 20”
Pressure Rating
900 LB- 2500 LB
Standard Connections
BW
Material
Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC
Seat: A105+13CR / A105+STELLITE 6,ETC
Stem: A182 F6(13CR) / A182 F304/F316
Trim: NO.1 ‐ NO.14
Features And Benefits
Pressure Sealed Bonnet
Full Bore
Rising Stem
Flexible Wedge Or Solid Wedge
Operated By Handwheel,Gear,Electric, Pneumatic Actuator
Standard
Design & Manufacturer: API 600
Face To Face :ANSI B16.10
BW ENDS to ANSI B16.25
Inspection standard: API598
NACE MR-01-75
Other sizes and pressure classes available. Contact the company for specifications.
