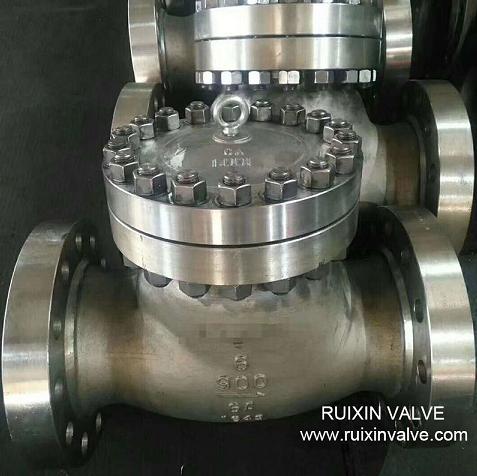

900# Duplex steel Swing check valve Flange end
- Product Name: 900# Duplex steel Swing check valve Flange end
- Model Number: G2222
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T,L/C,Western Union
- MemberShip: Free Member
- Inquiry Now
900# Duplex steel Swing check valve Flange end G2222 Description
Product DetailsSize2 inch - 48 inch
Pressure Rating
150 LB- 1500 LB
Standard Connections
Flanged Ends (RF,FF)
Material
Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC
Seat: A105+13CR / A105+STELLITE 6,ETC
Trim: NO.1 ‐ NO.14
Features And Benefits
Bolted Bonnet
Full Bore
Swing Type
Threaded Or Weld Seat Ring
Standard
Design & Manufacturer: BS1868 or API 6D
Face To Face :ANSI B16.10
End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605
BW ENDS to ANSI B16.25
Pressure-Temperature: ASME B16.34
Inspection standard: API598
NACE MR-01-75
Other sizes and pressure classes available. Contact the company for specifications.
