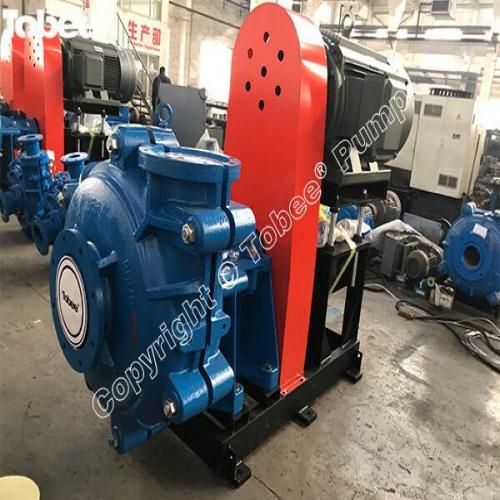

8/6 AH warman similar slurry pumps and spares
- Product Name: 8/6 AH warman similar slurry pumps and spares
- Model Number: AH HH M L
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 100000/month
- Payment: 100T/T
- MemberShip: Free Member
- Inquiry Now
8/6 AH warman similar slurry pumps and spares AH HH M L Description
• Horizontal,Cantilevered,Centrifugal,Single stage slurry pump design.
•
Bearing assembly - A large diameter shaft with short overhang minimizes
deflection and contributes to long bearing life. Only four through
bolts are required to hold the cartridge type housing in the frame.
•
Casing - Casing halves of cast or ductile iron with external
reinforcing ribs provide high operating pressure capabilities and an
extra measure of safety.
• Impeller - Front and rear shrouds have
pump out vanes that reduce recirculation and seal contamination. Hard
metal and moulded elastomer impellers are completely interchangeable.
•
Liners - Easily replaceable liners are bolted, not glued, to the casing
for positive attachment and east of maintenance. Hard metal liners are
completely interchangeable with pressure moulded elastomer
•
Throatbush - Wear is reduced and maintenance simplified by the use of
tapered mating faces to allow positive accurate alignment during
assembly and simple removal.
• Shaft seal - Packing seal,Centrifugal seal,Mechanical seal;
• Driving type - Flexible coupling,V-belt with pulleys,Gearbox,VFD,SCR control etc.
• The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
• Easy to install and maintain in on-site application.
