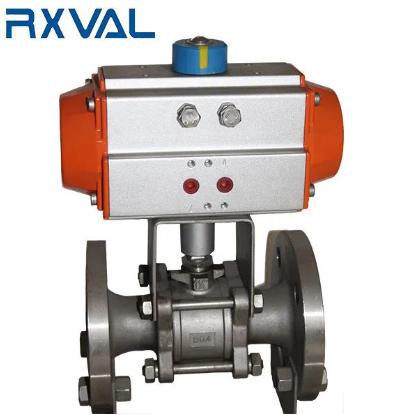

3PC Ball Valve Flange End with Pneumatic actuator
- Product Name: 3PC Ball Valve Flange End with Pneumatic actuator
- Model Number: RXV050
- Brand Name: RXV
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 10T/month
- Payment: T/T,Paypal
- MemberShip: Free Member
- Inquiry Now
3PC Ball Valve Flange End with Pneumatic actuator RXV050 Description
Product Description：
Features
Design and Manufacture: API 6D API608 or BS5351
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Test: API6D or API 598
Sizes: 2''-10'' FB/RB
Pressures: ANSI 150lb-2500lb
Materials: Forged Carbon / Stainless Steel
Ends: RF and RTJ flange ends to ANSI B16.5 OR ANSI B16.47 and MSS SP-44 standard.
BW flange ends to ANSI B16.25 standard.
Type of Operation: Lever, Connection dimensions of Worm Gear actuator. Electric actuator, Pneumatic actuator to ISO 5211 standard. Anti-static Electricity constructions ''AS'' and Fire-safe constructions ''FD''.
| Materials | Cast steel(WCB, CF8, CF8M) |
|---|---|
| API | 2"-10" |
| ANSI 150lb-2500lb | |
| Stainless Steel |
