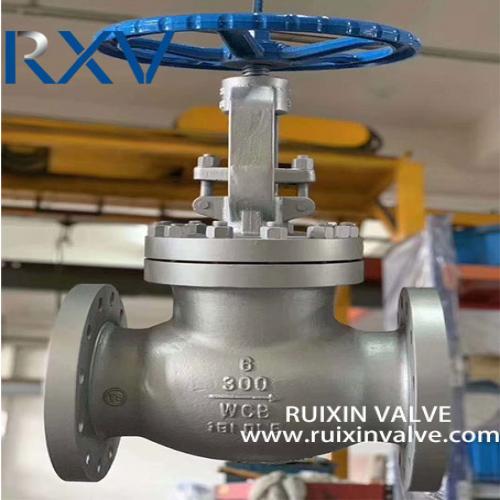

300# globe valve flange end WCB material
- Product Name: 300# globe valve flange end WCB material
- Model Number: G224
- Brand Name: RXVAL
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 100Ton/month
- Payment: T/T,L/C,Western Union
- MemberShip: Free Member
- Inquiry Now
300# globe valve flange end WCB material G224 Description
Product DetailsPressure Rating150LB - 2500 LB
Standard Connections
Flanged Ends (RF,FF)
Material
Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC
Seat: A105+13CR / A105+STELLITE 6,ETC
Stem: A182 F6(13CR) / A182 F304/F316
Trim: NO.1 ‐ NO.14
Features And Benefits
Full Bore
Rising Stem
Bolted Bonnet OS&Y, Or Pressure Seal Bonnet
Flexible Wedge Or Solid Wedge
Threaded Or Weld Seat Ring
Operated By Handwheel,Gear,Electric, Pneumatic Actuator
Standard
Design & Manufacturer: BS1873
Face To Face :ANSI B16.10
End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605
BW ENDS to ANSI B16.25
Checking & Test : API 598
Pressure-Temperature: ASME B16.34
NACE MR-01-75
Other sizes and pressure classes available. Contact the company for specifications.
