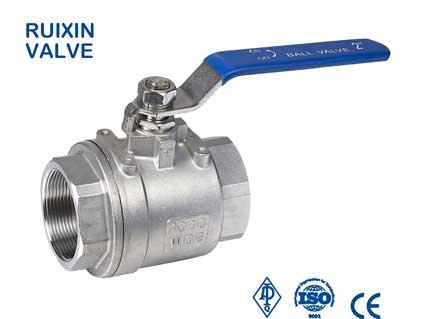

• Product Name: 2pc ball valve BSP/NPT thread 1000WOG
• Model Number: B211
• Brand Name: RXV
• Place of Origin: Zhejiang, China
• Minimum Order Quantity: 1
• Supply Capacity: 10000 pieces/month
• Payment: T/T
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

2pc ball valve BSP/NPT thread 1000WOG B211 Description

Size

1/4 inch-4 inch

Pressure Rating

1000 PSI

Standard Connections

Threaded (BSP. NPT. PT. DIN 259, 2999)

Material

Body/Bonnet:CF8M (SS316), CF8 (SS304),WCB

Ball:CF8M (SS316), CF8 (SS304)

Features And Benefits

Full Bore

Mounting Pad Available

Temperature range: -60 to 450 °F

Blow-out proof stem

100% leakage tested

Locking device (option)

ISO-5211 mounting pad for actuator (option)

Standard

Design : ASME B16.34

Thread Acc: ANSI B1.20.1

Weld Acc: ANSI B 16.11

Inspection standard: API598/DIN12266
