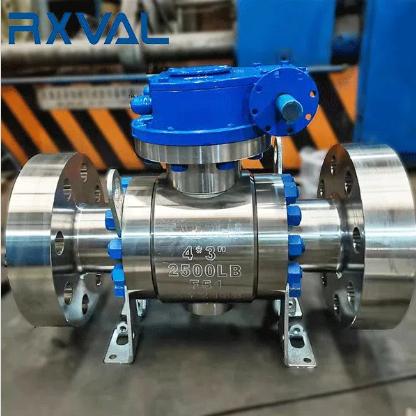

• Product Name: 2500LB F51 Ball Valve Flange end with Gearbox Operation
• Model Number: RXV030
• Brand Name: RXV
• Place of Origin: Zhejiang, China
• Minimum Order Quantity: 1
• Supply Capacity: 10T/month
• Payment: T/T,Paypal
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

2500LB F51 Ball Valve Flange end with Gearbox Operation RXV030 Description

Features

● Design: API 6D

● Sizes: 1/2″-48″

● Pressures: ANSI 150lb-2500lb

● Materials: UNS 31803 (F51), UNS 32205 (F60), Alloy 2205, UNS S32550 (F61), UNS S 32750 (F53), Alloy 2507 and UNS 32760 (F55).

● Ends: RF and RTJ flange ends to ANSI B16.5 OR ANSI B16.47 and MSS SP-44 standard
             BW flange ends to ANSI B16.25 standard.

             Screwed Ends To ASME B1.20.1

● Fire Safe Design/Test: API 607 or API 6FA

● Checking & Test : API 598

● Type of Operation: Lever, Gear, Electric actuator, Pneumatic actuator

● Fire Safety Seat Sealing

● Anti-Static Spring Device

● Blow-out proof stem

● 100% leakage tested

● Full Bore or Reduce Bore
